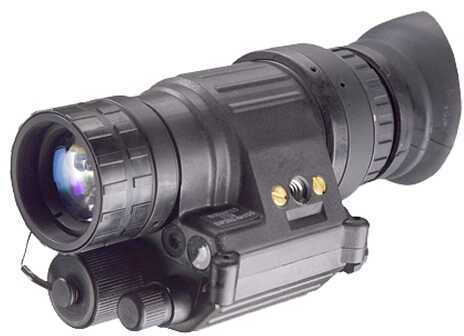

ATN PVS14 3A
ATNs PVS14-3A (1AA) are rugged, lightweight and versatile Night Vision Monocular designed for the most demanding of nighttime applications. The ATN PVS14-3A (1AA) can be handheld, head/helmet-mounted for hands free usage or adapted to cameras/camcorders. Originally designed for the U.S. military, these units are of the highest quality in optics, design and functionality. The ATN PVS14-3A (1AA) is an outstanding choice for professional night vision applications.
Features:
- US Military design
- Multi Purpose Unit
- Hand held monocular
- Hands-free goggle (optional helmet mount)
- Mil Spec Headgear
Specifications:
- Total Darkness IR System: Yes
- Smart Technology: No
- Multi-Purpose System: Yes
- IIT Generation: 3
- Photocathode Type: Thin Film GaAs
- Resolution: 64-72 lp/mm
- Signal to Noise Ratio: 26 Typical
- Figure of Merit: 1800 Typical
- MTTF (Mean Time Before Failure): 10,000 hours
- Magnification: 1x
- Lens System: F1.2, 26mm
- Proshield Lens Coating: Yes
- Field of View: 40°
- Range of Focus: 0.25m to Infinity
- Diopter Adjustment: -5 to +2
- Controls: Direct
- Automatic Brightness Control: Yes
- Bright Light Cut-off: Yes
- Automatic Shut-off System: Yes
- Infrared Illuminator: Yes
- IR Indicator: Yes
- Low Battery Indicator: Yes
- Power Supply: 1 - 1.5 Volt AA size
- Battery Life: 50 Hours
- Environmental Rating: Waterproof
- MIL-STD-810: Complies
- Operating Temperature: -40 to +50 °C
- Storage Temperature: -50 to +70 °C
- Dimensions: 4.5" x 2.2" x 2"
- Weight: 0.68 lbs
Mfg No: NVMPPVS143A
Manufacturer: ATN Corporation
Shipping Information
Weight: 2.5 pounds.
Dimensions: 12.5 (L) x 7.25 (W) x 7.125 (H) inches.:
192192
Specification | Value | |
---|---|---|
MFG NO | NVMPPVS143A | |
SKU | 11061215 | |
UPC | NOUPC8329 |
ATN | ||
Phone: | 650-989-5100 | |
Email: | sales@atncorp.com | |
Website: | http://www.atncorp.com | |
Address: |
1341 San Mateo Ave South San Francisco, CA 94080 |
Quantity Available | Price |
---|
