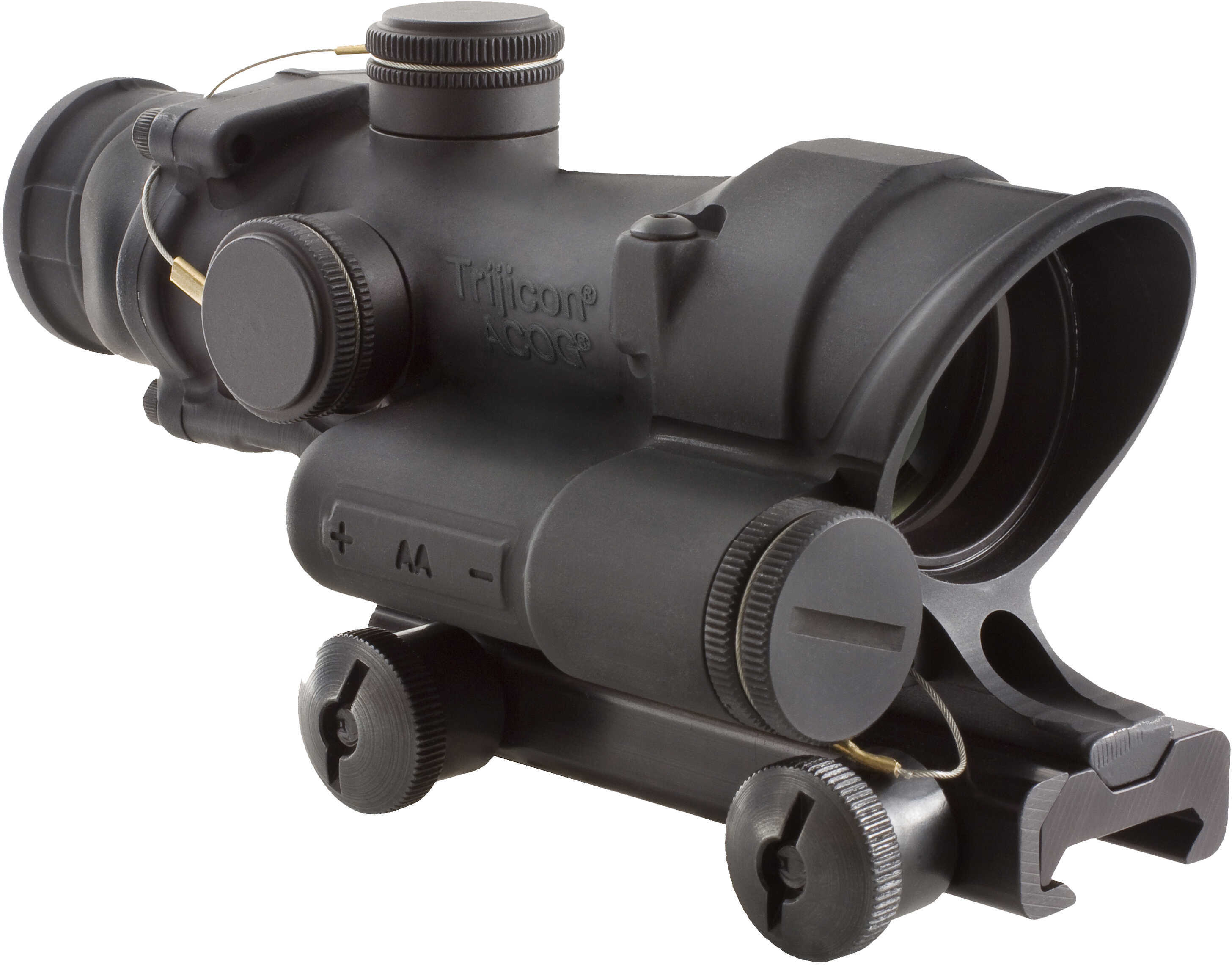

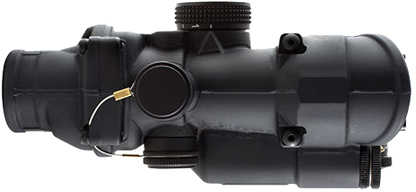

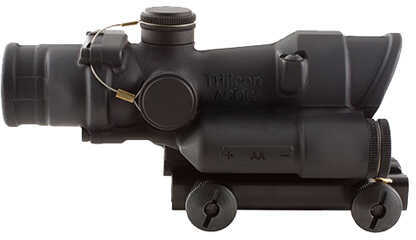

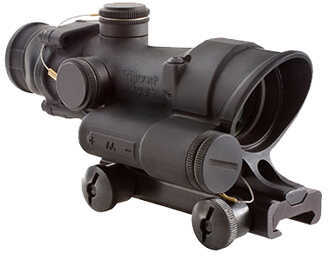

Trijicon ACOG 4x32 LED Battery Illuminated Red Chevron .300 Blackout BR
With the same rugged precision as the legendary Trijicon ACOG, the Trijicon 4x32 Battery ACOG delivers robust engineering and enhanced user control. Powered by a single AA battery, the electronics offer an outstanding level of reliability with a straightforward brightness dial, allowing the operator to determine how much to illuminate the reticleeven in transitional lighting. The body has been optimized by moving the RMR mount forward to maximize its performance in conjunction with the ACOG. Fully night vision device compatible, the Trijicon 4x32 Battery ACOG is also compatible with most other 4x32 ACOG accessories available.

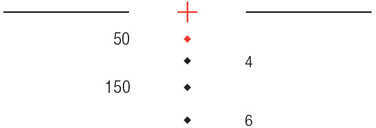

The 300 blackout reticle with merged aiming points has been optimized for simplicity and efficiency. It allows the user to instantly switch between supersonic and subsonic ammunition without having to re-zero the weapon. The supersonic BDC (out to 600 yds.) has been merged with the subsonic BDC (out to 200 yds.) to provide one set of aiming points for both types of ammunition. The reticle drops are based on an average of commonly available off-the-shelf subsonic and supersonic ammunition. This BDC reticle is not limited to one or two specific bullets: a majority of commonly available ammunition will fall within the 2 MOA diamond aiming points. The 2 MOA diamonds offer a balance of speed and versatility based on the unique performance of the 300 Blackout caliber. The drops for each aiming point are provided for users who wish to develop their own handloads, or for those who wish to deviate from the recommended zero distances.
- 1 Thumbscrew Flattop Adapter (TA51)
- 1 AA Battery
- 1 LENSPEN® (TA56)
- 1 Lanyard Assembly for Adjuster Caps (TA71E)
- 1 Lanyard Assembly for Battery Cap
- 1 Trijicon Logo Sticker (PR15)
- 1 Manual
- Magnification: 4x
- Objective Size: 32mm
- Bullet Drop Compensator: Yes
- Length: 6"
- Weight: 18.1 oz. with TA51 Mount and Alkaline Battery
- Illumination Source" LED
- Reticle Pattern: Crosshair w/ Merged Aiming Points
- Day Reticle Color: Red
- Night Reticle Color: Red
- Calibration: 300 BLK
- Bindon Aiming Concept: Yes
- Eye Relief: 1.5"
- Exit Pupil: 8mm
- Field of View (Degrees): 7
- Field of View 100 yards: 36.8'
- Adjustment 100 yards (clicks/in): 2
- Mount Comes With: TA51
- Housing Material: Forged Aluminum
- Batteries: Single AA Lithium or Alkaline Battery
- Battery Life: Over 12,000 hours on setting #4 using supplied alkaline battery at 21C (70F)
Mfg No: TA02-C-100431
Weight: 5.7 pounds.
Dimensions: 0 (L) x 0 (W) x 0 (H) inches.:
