Battle Arms Aluminum Take Down Pin Set OD Green

Battle Arms Aluminum Take Down Pin Set OD Green

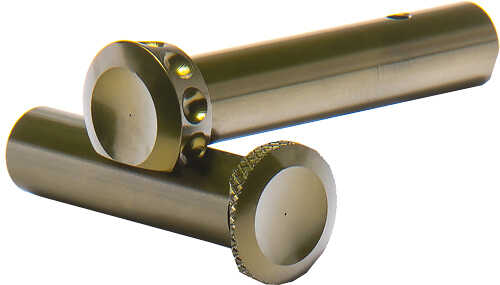

Battle Arms Development Enhanced Pin Set (BAD-EPS) for the AR15 / M16 / M4 style rifles.



The BAD-EPS features the following improvements and features :

Precision Swiss CNC machined.



AR15 / M16 / M4 Compatible - Fits all AR15/M16/M4 lower receivers with mil-spec .250in diameter front pivot and rear take-down pinholes.



Patent Pending Pivot Pin & Takedown Pin Head Designs - Greatly improved gripping surface and pull strength without the use of oversize heads.



Low Profile Pin Heads - Low drag and never in the way. Lower profile than mil-spec pinheads.



Ambidextrous Safety Compatible - The Enhanced Takedown Pin (BAD-ETP) head design does not obstruct the use of the right side ambidextrous safety selector lever.



Extended Pin Tips (+0.030in over mil-spec) - Added tip length noticeably aids in starting/pushing the pins out from the left side of the receiver, without undue protrusion.



Bullet Tip Guide - Cone-shaped recess at both pin tips prevents accidental bullet or tool slip and reduced the chance of scratching/damaging of the receiver.



BAD-EPS comes with :

(1) Enhanced Takedown Pin



(1) Enhanced Pivot Pin



(2) KNS hardened stainless steel detents



(2) 17-7 nickel-plated stainless steel pin springs.



Patented EZ Guide Channel



Proudly designed and manufactured in the U.S.A.



Due to various factors during the anodization process, the color may vary from batch to batch.
Dimension: 0.90 X 2.85 X 4.70
Height: 0.9
Width: 2.85
Length: 4.7
Type/Color: BAR Stock Take Down Pin Black
Size/Finish: OD Green
Material: Aluminum
AR-15 Accessory: Y
Other FEATURES:: PATENDED Head DEESIGNS For Improved Gripping Surface. ADDED Pin Length Aids In PUSHING PINS From The Left


Manufacturer: Battle Arms Development

Model No: BADEPSALODG
