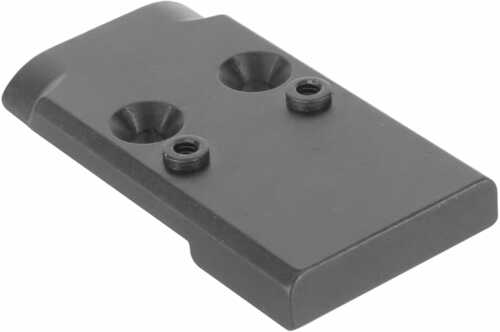

The C&H Precision plates are designed, manufactured and shipped from our small family owned business in Coastal Georgia. Each plate is precision machined to the tightest tolerances on HAAS CNC machines and each plate goes through multiple quality checks before shipping to our customers.
Most of our plates feature a patented stainless steel T-Nut which provide an industry leading six to seven threads of engagement. Since all the mounting hardware is replaceable, if any mounting hardware is damaged it can be replaced without replacing the entire plate.
Specification :
Thickness: V4 MIL / LEO Plates are .095? to .099? thick
Material: Plates are made from 6061 aluminum. All mounting hardware is Stainless Steel
Finish: Plates are MIL-SPEC Type III Hard Anodized – Black
Replaceable 416 Stainless Steel T-Posts for maximum thread engagement
INCLUDED : Qty 1 – Optic Plate
Qty 2 – Viton O-Rings
Qty 2 – 4-40 Optic Mounting Screws
Qty 2 – 6-40 Plate Mounting Screws
Qty 2 – Patented 416 Stainless Steel T-Nuts
Qty 1 – VC3 Thread Locker
