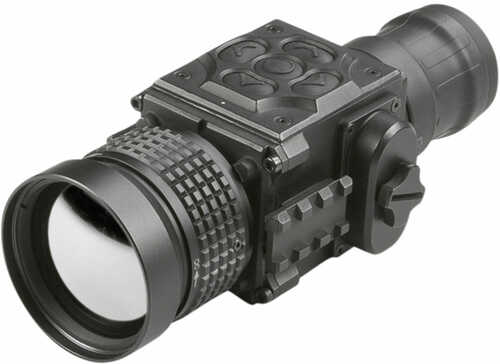

The AGM Victrix is a compact thermal imaging clip-on system that allows quick transformation of the day optics into thermal imaging device without any special skills. The Victrix can be easily attached on up to 8x magnification scopes for medium range use. Powered with two CR123 batteries the unit provides up to 5 hours of continuous work. An optional external battery pack with highcapacity is capable of increasing the total operation time to up to 44 hours. The Victrix can be also connected to an optional video recorder for shooting real time video or external Wi-Fi module for conjunction with smartphones.
Quick conversion of daytime optics into thermal imaging scope
Mounts in front of any daytime scope, no re-zeroing is required
Electronic accuracy correction
Lightweight and compact design
Superior clarity, versatility and reliability
Waterproof & shockproof
Easy to operate control panel
High resolution display
Picture in Picture (PIP )mode with 2x digital zoom
Automatic or manual (silent) calibration
Stadiametric rangefinder
Powered by two standard CR123A batteries
External power supply via micro-USB
Optional external Wi-Fi module and video recorder
Integral rails on unit for optional accessories
Limited 3-Year Warranty
Specifications
Detector type: 17?m Uncooled Microbolometer
Refresh rate: 50 Hz
Resolution: 384x288
Lens system: 50 mm; F/1.0
Optical magnification: 1×
Field of view (H × X): 7.5° x 5.6°
Digital zoom: 1×, 2×, 4×, PIP
Focusing range: 10 m to infinity
Display: HD Display 1024x768
Video/Photo Format: AVI / JPG
Temperature imaging palettes: 11 Image palettes
Interfacing: S620 Connector (Power In, Analog Video In/Out, Digital Video Recorder); Micro-USB (External Battery Pack)
Battery Type: Two CR123A 3V Lithium Batteries
Battery Life (Operating): Up to 5 hr
Power supply: 5V USB / 3.6~7.2 V
Operating Temperature Range: -40°C to +70°C (-40°F to +158°F)
Degree of Protection: IP67
Weight: 0.5 kg (1.1 lbs)
Overall Dimensions: 192 x 70 x 64 mm (7.6 x 2.8 x 2.5 in)
