Lee Ram Swage

Lee Ram Swage

SPECIFICATIONS
BRAND:
LEE
CA PROP 65:
YES
CA PROP 65 CHEMICAL:
LEAD
RELOADING CASE PREP TYPE:
PRIMER POCKET TOOLS
DESCRIPTION
The Lee Ram Swage works on all single stage or turret presses that have 7/8”-14 threads in the press frame, and accept universal press shell-holders.

Features spring assisted case extraction, and an all steel case guide, ensures cases will be positively centered on push rod.

Shell-holderless design, allows you to swage any small or large primer pocket, without swapping to a different size shell-holder.

Primer pocket swaging is necessary when reloading brass that have crimped primer pockets, most cases used in military or non civilian applications have this crimp. Typical cases that you will encounter primer pocket crimps are 45 ACP, 223(5.56mm), 30-06, 308(7.62x51), 9mm Luger and special law enforcement 40 S&W.

The hardened steel swage punch is automatically extracted from the primer pocket by five 400 pound force disc springs.

Swage holder, large or small, installs in seconds into your press ram with no adjustments required.

Primer pocket swaging is so fast you’ll want to swage all range brass.

Nothing reduces priming problems on a progressive press more than properly swaged primer pockets. Surplus military and police department brass is a great low cost source of cases.

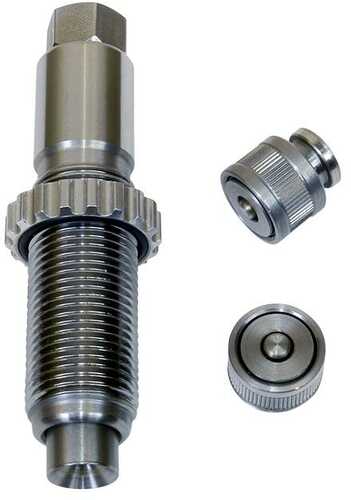

Complete swaging set includes: guided 7/8”-14 threaded swage push die, both large and small ram swage holder assemblies.
