ATN Odin 320x240 Weapon Sight Kit 32DW, 35mm, 60Hz TIWSOD32D

ATN Odin 320x240 Weapon Sight Kit 32DW, 35mm, 60Hz TIWSOD32D

See more products from ATN

SKU 93002
UPC 658175113607

Calculate Single Item Shipping Cost
Click to see larger image.

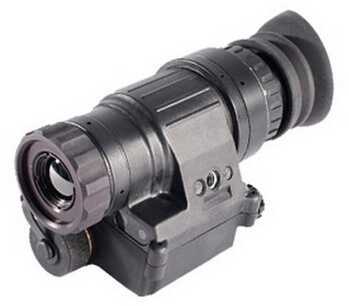

The Odin-32DW has become the smallest Thermal Imaging Monocular System today. It features extremely small size and low weight because of its advanced construction and characteristics using the latest technologies in high grade polymers to make a Mil. Spec, system that is identical in size, weight and shape to a AN/PVS-14.
The Odin-32DW is a multi-purpose system using the latest in miniature thermal sensor technology combined with the new OLED Display to provide a superior stable image in the smallest package available. The system also includes an array of features that help the user to enhance the sight to meet all of their requirements. The Odin-32DW is one of the most capable thermal monocular systems on the market and comes with a very affordable price point.
The Odin-32DW 2x system is designed for hand held, head mounts and weapon mounted operations.
Designed to use the same accessories as the AN/PVS-14 Night Vision Monocular System the Odin-32DW has many options available for head mounting. The easiest is the easy to use J-Arm bracket and a standard head strap.
The Odin-32DW has the ability to be rail mounted to a light caliber weapon such as a M16 or M4 using the accessory weapon rail interface adapter. An optional digital reticle aiming system is also available for the Odin-32DW.
With the ability to use most accessories for the AN/PVS-14 the Odin-31DW is user friendly and easy to learn to use. The system design has been proven effective and reliable as well as functional. The Odin-32DW is a perfect compliment to any user of night vision monocular systems.


- Ergonomic Design
- Compact and Lightweight
- PVS-14 Construction
- Mil. Spec Optics
- Head Mountable
- Weapon Interface
- Variable Geometry Display
- E-Zoom
- Digital Brightness Control
- Icon Based Menu System
- Color Modes
- Black/White Polarity/ Multiple Color Modes
- VOx Vanadium Oxide Detector
- 800 x 600 OLED Display
- Video Output
- Made in USA


Sensor (microbolometer): 320 x 240
Type: Uncooled
Material: Vanadium oxide (VOx)
Image Size (output resolution): 800 x 600
Frame rate: 60 Hz
Video output: Analog RS-170
Lens: 35 mm
Display: Color OLED matrix, SVGA< 800x600
Thermal Sensitivity: <50mK
Spectral Response" 7-14 µm
Field of View: 15°x11°
Eye Relief: 27 mm
Diopter Adjustment: -6 to +4
Optical Magnification: 2X
E-Zoom: 4X, 8X
Human Detection: 750 m
Human Recognition: 300 m
Human Identification: 180 m
Vehicle Detection: 1650 m
Vehicle Recognition: 660 m
Vehicle Identification: 400 m
Reticle: Multiple Reticles to Choose From
Polarity control: White hot / Black hot / Multiple Color Modes
Start up time: <4 sec
Waterproof: Waterproof / Dustproof
Battery type: 1 x CR123A battery type
Battery Life: 2+ hrs
Weight: 0,77 lb /350 grams
Dimensions: 3.40" x 2.20" x 1.95" / 87mm x 56mm x 50mm

32DW, 35mm, 60Hz
