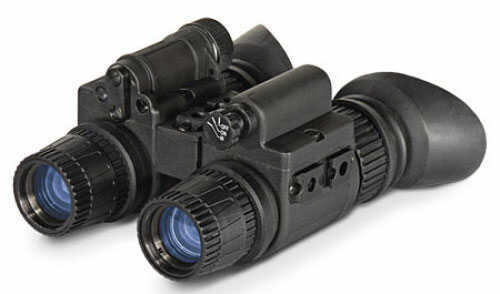

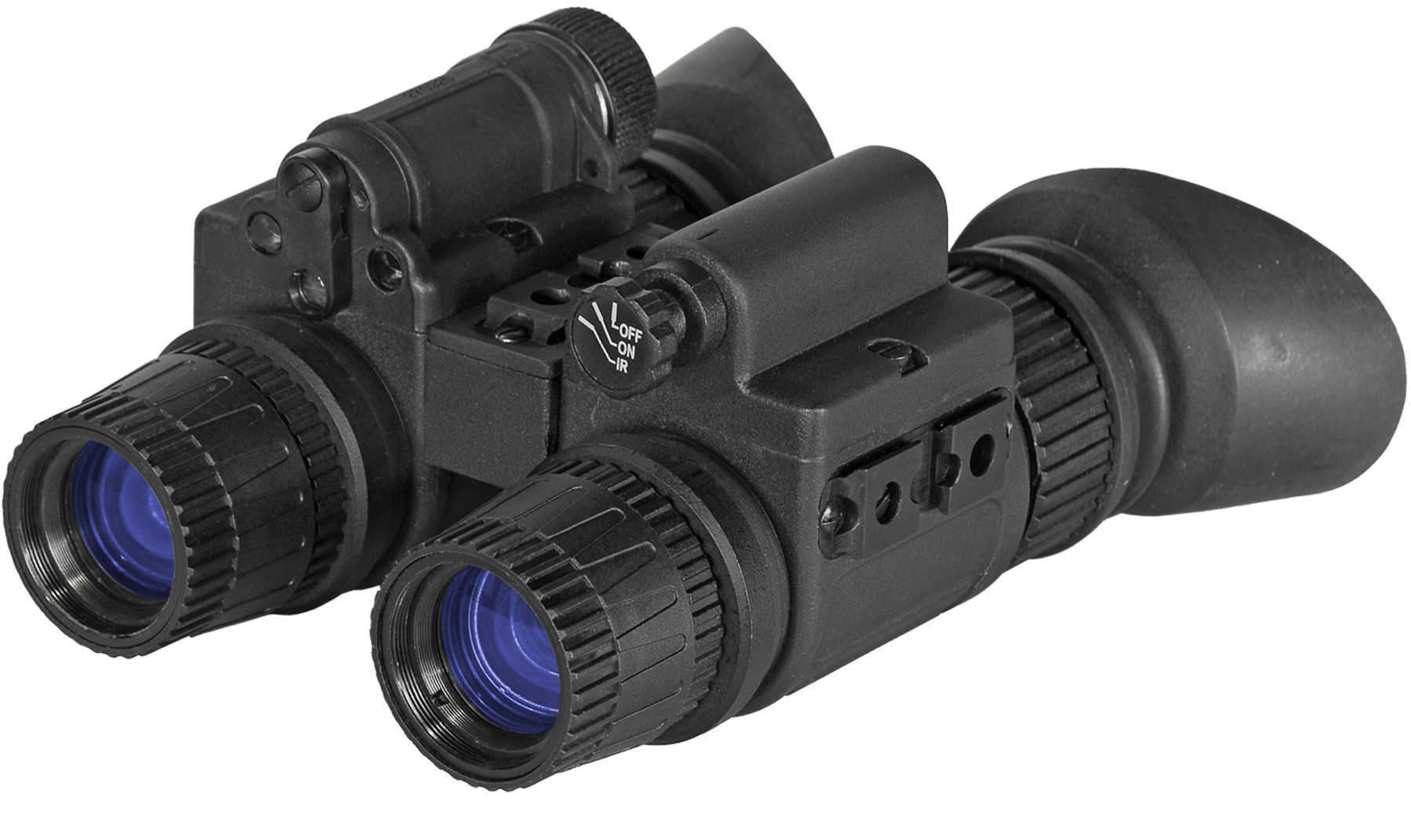

ATN PS15-WPT Night Vision Goggles Model NVGOPS15WP

ATN PS15-WPT Night Vision Goggles Model NVGOPS15WP

Item Description


The ATN PS15-WPT is a compact, lightweight dual Night Vision Goggles system. It utilizes two high-performance Image Intensifier Tubes to provide extremely clear and crisp images under the darkest conditions. This dual-tube design provides increased depth perception and outstanding clarity. A built-in IR lets the user easily read a map and function in a total darkness environment. Available in a wide array of Image Intensifier Tube configurations, the ATN PS15-WPT Night Vision Goggles is designed to handle every budget and mission requirement. The ATN PS15-WPT Night Vision System is a high-performance choice!

Features


Dual goggle/binocular


Hands Free use


Comfortable, flip-up Head gear


Lightweight, Compact


Depth Perception


Optional powerful 3x A focal lenses to make into binocular


Waterproof


Limited Two-Year Warranty

Specification


Total Darkness IR System Yes


"SMART" Technology No


Multi-Purpose System No


IIT Generation WPT™


Photocathode Type Multi-Alkali


Resolution 60-74 lp/mm


Signal to Noise, minimum 18-26


MTTF - Mean Time Before Failure 10,000 hours


Magnification 1x


Lens System F1.2, 27 mm


Proshield Lens Coating Yes


Fov 40°


Range of Focus 0.25 m to infinity


Diopter Adjustment -6 to +2


Controls Direct


Automatic Brightness Control Yes


Bright Light Cut-off Yes


Automatic Shut-off System Yes


Infrared Illuminator Yes (Built-in with flood lens)


IR Indicator Yes (in FOV)


Low Battery Indicator Yes (in FOV)


Power Supply 1x1.5 V AA type battery or


1x3 V CR123A type battery


Battery Life 40 hrs


Environmental Rating Waterproof


MIL-STD-810 Complies


Operating Temperature -40 to +50 °C


Storage Temperature -50 to +70 °C


Dimensions 120x114x69 mm


4.7"x4.5"x2.7"


Weight 0.7 kg / 1.54 lbs


Warranty 2 years

Mfg No: Nvgops15wp
Manufacturer: Atn


Atn_Nvgops15wp

Please note all ATN night vision equipment is tested just before we ship so this will normally adds 2 days to the shipping time.
