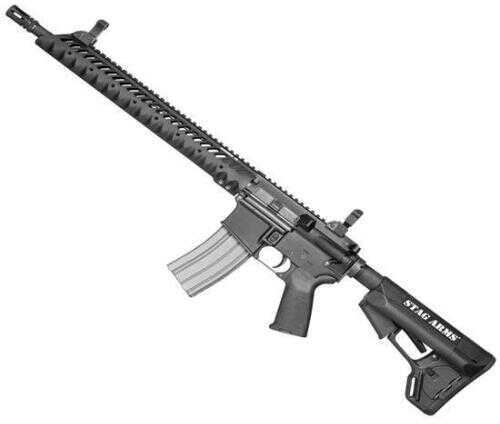

Stag Arms AR-15 Semi Auto Rifle 5.56 NATO/.223 Rem Left Hand 16" Barrel 30 Rounds with Diamondhead VRS Handguard
Designed with the input of multiple law enforcement agencies and 3-gun competitors, this AR-15 from Stag is out of the box ready for competition, varmint hunting or patrol. Fast and accurate, and suitable for both close and long range engagements, this rifle features a Diamondhead VRS-T free-floating handguard, Diamondhead aluminum sights, a six position Magpul ACS stock and Magpul pistol grip. This is a left handed rifle.
- Upper and lower receivers milled from forged and mil-spec 7075 T6 aluminum with type III hard coat anodizing
- Enhanced semi auto bolt carrier with manganese phosphate finish
- 13.5" Diamondhead VRS-T freefloat handguard
- Diamondhead aluminum flip up front and rear sights
- Standard carbine buffer and spring
- Mil-spec receiver extension
- Magpul ACS 6-position stock
- Magpul pistol grip
- A2 flash hider
- Overall Length: 37" extended, 33.5" collapsed
- Weight: 7.5 lbs
Caliber Dictionary
The Below Information Has Been Provided From Our Gun Caliber Dictionary And Is Meant For Informational Purposes Only. It Is Not Intended to Describe The Unique Specifications For This Ammunition.
The 5.56X45mm NATO cartridge was designed by James Sullivan, a member of Eugene Stoner's engineering team that developed both the M16 rifle and its original cartridge. The 5.56X45mm NATO was adopted by the U.S. military in 1964 and by NATO in 1980. With bullet diameter of .224-inch, the original M193 military cartridge used a 55-grain bullet at 3250 fps; the current M855A1 cartridge, developed by FN, uses a 62.5-grain bullet at 3020 fps, offering greater range and better penetration. The civilian version of the 5.56X45mm is 223 Remington; the cartridges are dimensionally identical but military chamber dimensions and specifications for military brass are different. It is considered safe to use 223 Remington ammo in a 5.56X45MM NATO chamber, but not a good idea to use 5.56X45mm ammo in a rifle specifically chambered for the 223 Remington. Although the stopping power of .22-caliber bullets remains controversial the 5.56X45mm has served well in now multiple generations of M16 rifles. — Craig Boddington
