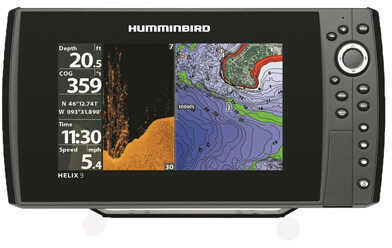

Humminbird Helix 9 Di GPS Md: 409930-1
The HELIX 9 DI GPS features a brilliant 480V x 800H, 9" color display with backlight. Down Imaging and DualBeam PLUS sonar with 4000 watts PTP power output, Precision Internal GPS Chartplotting with built-in Humminbird ContourXD map and Ethernet networking capabilities.
Features:
- 360 Imaging: We have you surrounded. 360 Imaging allows you to isolate your sweep, see 5 preset views or see all around you
- Down Imaging Sonar: Get a fish-eye's view of what's happening below your boat. Incredible images are created with High-frequency sound waves
- SwitchFire Sonar: Take command of how your sonar returns appear with Clear and Max Modes
- Dualbeam Plus Sonar: Two beams combine for great detail and a wide coverage area. Use the narrow beam for high-accuracy returns and bottom. Use the wide beam when you want a larger search area
- Internal GPS: GPS antenna built into the head unit
- Up-gradable Software: Access software updates to enhance the performance of your Humminbird unit through the My Humminbird section of the site
- Dual SD Card Slots: Use one slot for advanced cartography and the other to save screenshots, sonar recordings and waypoints
- High Definition Display: Provides bright, crystal-clear images for easy viewing in harsh sunlight
- Contour XD: Built-in base map cartography that covers 3,000 US lakes with depth contours and many other locations without contours
- Ethernet: Rig up the ultimate fishing system. Use the 5-Port Ethernet switch to link together multiple Humminbird head units or share transducers
- HD Radar: In darkness and fog, busy channels and treacherous weather, situational awareness is the name of the game
- AIS: Battle fish - not other boats. Humminbird's state of the art AIS technology takes the risk and guesswork out of navigating high-traffic channels or low-visibility seas
- Autopilot: Never deviate from your route with the precise control and proven performance of your Humminbird Autopilot System
- i-Pilot Link: An integrated GPS Trolling System available on select Minn Kota Terrova and PowerDrive V2 motors which enable your motor and Humminbird to communicate
- NMEA 2000: Get an at-a-glance view of fuel consumption, engine performance and other vessel data
- Wireless: Take wireless control of your Humminbird with the new Bluetooth Remote and Dongle
Specifications:
- Display Pixel Matrix: 480V x 800H
- Display Type: Color TFT
- Display Colors Grayscale: 65,000 Colors
- Sonar Standard: Down Imaging/DualBeam PLUS
- Standard Sonar Coverage: 16°, 28°, 45° & 75° @ -10db
- Standard Sonar Frequency: 50*/83/200/455/800 kHz
- Target Separation: 2.5"
- Power Output RMS: 500 Watts
- Power Output Peak to Peak: 4000 Watts
- Depth Capability: 350 ft DI, 600 ft
- Temperature: Built-In Transducer
- Speed: GPS Speed Included
- Backlight: LED
- Unit Size - Gimbal Mount: 13.44"W X 7.12"H X 4.20"D
- Mount A Type: Gimbal
- Unit Size - Indas
Specification | Value | |
---|---|---|
MFG NO | 409930-1 | |
SKU | 11113548 | |
UPC | 082324047329 |
Humminbird | ||
Phone: | ||
Email: | ||
Website: | http://www.humminbird.com | |
Address: |
678 Humminbird Lane Eufaula, AL 36027 |
