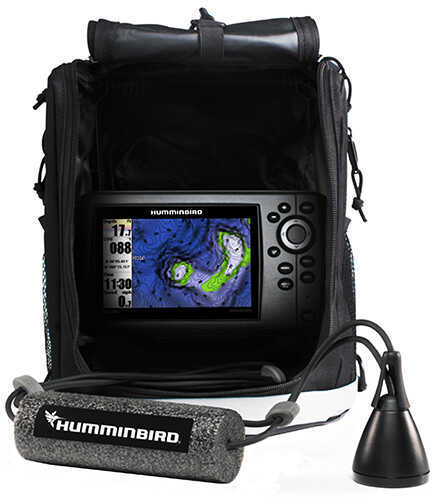

Humminbird Ice Helix 5 Sonar GPS Md: 409730-1

Humminbird Ice Helix 5 Sonar GPS Md: 409730-1

The ICE HELIX 5 SONAR GPS features a brilliant 800H x 480V, 5" 256 color display with backlight. DualBeam PLUS sonar with 4000 watts PTP power output, GPS Chart plotting with built-in UniMap cartography with a micro SD card slot for optional maps or saving waypoints.



Specifications :

- Display Size: 5" Diagonal

- Display Pixel Matrix: 800H x 480V

- Display Type: Color TFT

- Display Colors Grayscale: 256 Colors

- Sonar Standard: DualBeam PLUS

- Standard Sonar Coverage: 20°, 60° @ -10db

- Standard Sonar Frequency: 200/83 kHz

- Target Separation: 2.5"

- Power Output RMS: 500 Watts

- Power Output Peak to Peak: 4000 Watts

- Depth Capability: 1500 ft

- Temperature: Built In Transducer

- Speed: GPS SPeed Included

- Backlight: LED Backlight

- GPS Receiver: Included

- GPS Tracking: Included

- GPS Chartplotting: Included

- Waypoints, Routes, Tracks/Points: 2,500, 45, 50/20,000

- Humminbird Mapping: Optional

- Navionics Gold/HotMaps: Optional

- Navionics Platinum+: Not Supported

- Platinum Capable: Not Supported

- C-Map 4D: Not Supported

- 360 Imaging: Not Supported

- i-Pilot Link: Not Supported

- HD Radar: Not Supported

- NMEA 2000: Not Supported

- 5 Port Expansion Module: Not Supported

- WeatherSense: Not Supported

- Precision GPS: Included

- Heading Sensor GPS: Not Supported

- PC Connect: Optional

- External GPS Receiver: Optional

- AS Interlink: Not Supported

- AIS Compatability: Not Supported

- SwitchFire Sonar: Included

- Screen Snap Shot: Included

- Sonar Recording: Included

- Humminbird PC: Included

- Upgradable Internal Software: Included

- Split Screen Zoom: Included

- Split Screen Bottom Lock: Included

- 3D Chart View: Included

- Large Digits View: Included

- Wide/Narrow Cone Split Screen: Included

- Custom View Selections: Included

- Custom Digital Readout: Included

- View Preset Keys: Not Supported

- Temperature Graph: Not Supported

- Temperature Alarm: Not Supported

- Freeze Frame: Included

- Instant Image Update: Included

- Mark Structure on Sonar: Included

- Selective Fish ID+: Included

- Real Time Sonar: Included

- Triplog: Included

- X-Press Menu System: Included

- Card Reader Available: Yes

- Number Of Card Slots: 1
