Helix 10 SI GPS KVD Md: 409990-1KVD
Helix 10 SI GPS KVD Md: 409990-1KVD
See more products from Humminbird

MFG NO 409990-1KVD
SKU 11116785
UPC 082324047428

Calculate Single Item Shipping Cost
Calculate


Qty
available:
BACKORDER
NOTIFY ME WHEN AVAILABLE
Click to see larger image.

  • SUMMARY
  • SPECIFICATIONS
  • MANUFACTURER
  • QUANTITY PRICING

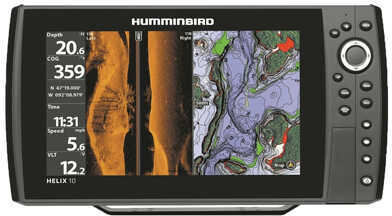

Humminbird Helix 10 SI GPS KVD Md: 409990-1KVD
The HELIX 10 SI GPS features a super bright LED backlit 10.1 in display. This wide screen 1024H x 600V color display provides bright, crystal-clear images for easy viewing in harsh sunlight. The HD Side Imaging/HD Down Imaging Sonar with DualBeam PLUS and SwitchFire has up to 8000 watts PTP power output, GPS Chartplotting with built-in Humminbird ContourXD map and Ethernet Networking capabilties. Includes a unit cover, dual card reader and Instant Access Preset buttons.

Specifications:
- Display Size - Diagonal: 10.1 in
- Display Pixel Matrix: 600V x 1024H
- Display Type: Color TFT
- Display Colors Grayscale: 65,000 Colors
- Sonar Standard: Side Imaging/Down Imaging/DualBeam PLUS
- Standard Sonar Coverage: 20°, 60°, (2) 86° & (2) 55° @ -10db (Total of 180°)
- Standard Sonar Frequency: 200/83/455/800/50* kHz
- Target Separation: 2.5 in
- Power Output RMS: 1000 Watts
- Power Output Peak to Peak: 8000 Watts
- Depth Capability: 150 ft (SI/DI), 1500 ft & 3000 ft
- Temperature: Built-In Transducer

- Speed: GPS Speed Included
- Backlight: LED
- Unit Size - Gimbal Mount: 13.44in W x 7.12in H x 4.20in D
- Mount A Type: Gimbal
- Unit Size - Indash Mount: 13.44in W x 7.12in H x 3.99in D
- Mounting Options: Optional In-Dash Mounting Kit
- Transducer Standard: XHS 9 HDSI 180 T
- Transducer Mounting: Transom
- Power Input: 10-20 VDC
- GPS Receiver: Included
- GPS Tracking: Included
- GPS Chartplotting: Included
- Waypoints, Routes, Tracks/Points: 2,750, 45, 50/20,000
- Humminbird Mapping: Optional
- Navionics Gold/HotMaps: Optional
- Navionics Platinum+: Optional
- Platinum Capable: Optional
- C-Map 4D: Not Supported
- 360 Imaging: Optional

- i-Pilot Link: Optional
- HD Radar: Optional
- NMEA 2000: Optional
- 5 Port Expansion Module: Optional
- WeatherSense: Not Supported
- Precision GPS: Included
- Heading Sensor GPS: Optional
- PC Connect: Optional
- External GPS Receiver: Optional
- AS Interlink: Not Supported
- AIS Compatability: Optional
- SwitchFire Sonar: Included
- Screen Snap Shot: Included
- Sonar Recording: Included
- Humminbird PC: Included
- Upgradable Internal Software: Included
- Split Screen Zoom: Included
- Split Screen Bottom Lock: Included
- 3D Chart View: Included
- Large Digits View: Included
- Wide/Narrow Cone Split Screen: Included
- Custom View Selections: Included
- Custom Digital Readout: Included

- View Preset Keys: Included
- Temperature Graph: Included
- Temperature Alarm: Included
- Freeze Frame: Included
- Instant Image Update: Included
- Mark Structure on Sonar: Included
- Selective Fish ID+: Included
- Real Time Sonar: Included
- Triplog: Included
- X-Press Menu System: Included
- Card Reader Available: Yes
- # Card Slots: 2

Manufacturer: Humminbird
Manufacturer Number: 409990-1KVD
UPC: 082324047428
SKU: 268645
