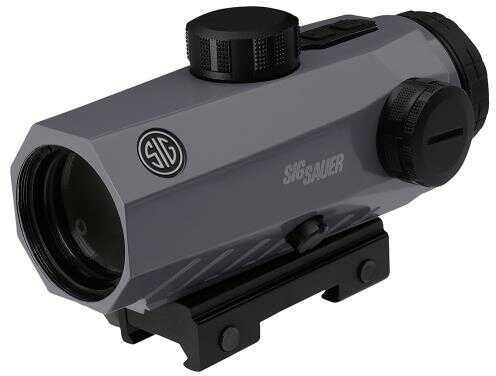

World’s first WIDE FIELD BATTLE SIGHT. Radically new design for professional and civilian MSR/AR-shooters, The BRAVO4 delivers an industry leading 42% wider field of view than current battle sights.
Features:
- MegaView system utilizes an advanced prism and ocular design yielding ?43% greater field of view than the competitive prismatic battle sights
- MOTAC (Motion Activated Illumination) powers up when it senses motion and powers down when it does not. Provides for optimum operational safety and enhanced battery life
- The notably flat, distortion-free image boasts an unprecedented edge-to-edge clarity by means of a combination of Low Dispersion (LD) glass and aspherical lens design
- Lightweight yet durable magnesium housing with integrated Picatinny top rail for additional accessories such as MRDs and lasers
- Adjustable eyepiece with +/- 2 diopter correction
- Dependable IPX-8 waterproof (to 400 mbar or 13 ft) and fog-proof performance
- The BRAVO4 was engineered with the centerline of the optical axis at 1.535” above the top of an M1913 Picatinny rail interface for night vision compatibility
- The BRAVO4 is covered by SIG SAUER’s INFINITE Guaranteeand Electronics Limited Warranty, see website for full details.
Specifications:
- Waterproof : Yes
- Height : 3 Inches
- Length : 6.25 Inches
- Width : 2 Inches
- Weight : 14.8 Ounce
- Power Variability: Fixed
- Minimum Power : 4
- Maximum Power :, 4
- Adjustment Click Value: 1/2 MOA
- Adjustment Type : Click
- Exposed Turrets : No
- Finger Adjustable Turrets: No
- Turrets Resettable to Zero: No
- Zero Stop : No
- Turret Height: Low
- Fast Focus Eye Piece : Yes
- Warranty : Sig Sauer Electro Optics Infinite Guarantee
- Reticle : 5.56mm/7.62mm Horseshoe Dot
- Illuminated Reticle: Yes
- Battery Type : CR2
- Holdover Reticle: Yes
- Reticle Focal Plane Location: 2nd
- Parallax Adjustment : Fixed
- Fog Proof : Yes
- Shock Proof: Yes
- Objective Lens Diameter : 30 Millimeter
- Eye Relief: 2.2 Inches
- Exit Pupil Diameter : 7.5 Millimeter
- Field of View @ 100 Yards Minimum Power : 53 Feet
- Field of View @ 100 Yards Maximum Power : 53 Feet
