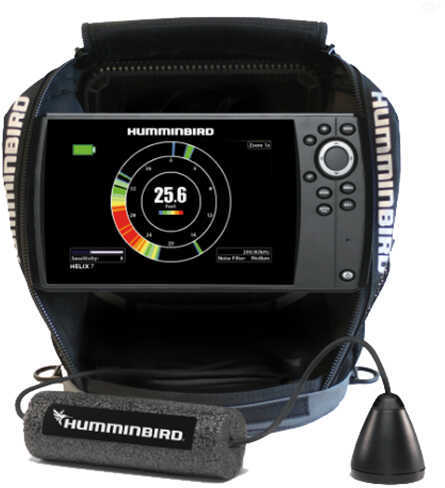

Humminbird Ice Helix 7 Sonar GPS Md: 409900-1

Humminbird Ice Helix 7 Sonar GPS Md: 409900-1



Features:

- SwitchFire Sonar -- Take command of how your sonar returns appear with the Clear and Max Modes

- Dualbeam Plus Sonar: Two beams combine for great detail and a wide coverage area. Use the narrow beam for high-accuracy returns and bottom. Use the wide beam when you want a larger search area

- Internal GPS: GPS antenna built into the head unit

- Unimap Cartography: The Humminbird UniMap is a built-in map covering the contiguous US coastline, inland lakes and rivers at 30 meters per pixel resolution

- Micro SD Card Reader: Use for advanced cartography or to save screenshots, sonar recordings and waypoints or to update your units software.



Specifications:

- Display Size - Diagonal:7"

- Display Pixel Matrix:800H x 480V

- Display Type:Color TFT

- Display Colors Grayscale:256 Colors

- Sonar Standard:DualBeam PLUS

- Standard Sonar Coverage:20° & 60° @ -10db

- Standard Sonar Frequency:200/83 kHz

- Target Separation:2.5"

- Power Output RMS:500 Watts

- Power Output Peak to Peak:4000 Watts

- Depth Capability:1500'

- Temperature:Optional

- Speed:GPS Speed Included

- Backlight:LED

- Mount A Type:Portable

- Unit Size - Indash Mount:10.54"W x 5.44"H x 1.13"D

- Mount B Unit Size2:Gimbal Mount





- Mounting Options:Portable or Optional Gimbal or Optional In-dash

- Transducer Standard:XI 9 20

- Transducer Mounting:Ice

- Power Input:10-20 VDC

- Power Draw:800 mA

- GPS Receiver:Included

- GPS Tracking:Included

- GPS Chartplotting:Included

- Waypoints, Routes, Tracks/Points:2,500, 45, 50/20,000

- Humminbird Mapping:Optional

- Navionics+:Optional





- Navionics Platinum+:Not Supported

- Platinum Capable:Not Supported

- C-Map 4D:Not Supported

- 360 Imaging:Not Supported

- i-Pilot Link:Not Supported

- HD Radar:Not Supported

- NMEA 2000:Not Supported

- 5 Port Expansion Module:Not Supported

- WeatherSense:Not Supported

- Precision GPS:Included

- Heading Sensor GPS:Not Supported

- PC Connect:Optional

- External GPS Receiver:Not Supported

- AS Interlink:Not Supported

- AIS Compatability:Not Supported

- SwitchFire Sonar:Included

- Screen Snap Shot:Included

- Sonar Recording:Included

- Humminbird PC:Included

- Upgradable Internal Software:Included

- Split Screen Zoom:Included





- Split Screen Bottom Lock:Included

- 3D Chart View:Included

- Large Digits View:Included

- Wide/Narrow Cone Split Screen:Included

- Custom View Selections:Included

- Custom Digital Readout:Included

- View Preset Keys:Not Supported

- Temperature Graph:Not Supported

- Temperature Alarm:Included

- Freeze Frame:Included

- Instant Image Update:Included

- Mark Structure on Sonar:Included

- Selective Fish ID+:Included

- Real Time Sonar:Included

- Triplog:Included

- X-Press Menu System:Included

- Card Reader Available:Yes

- # Card Slots:1

- Domestic CHO:no

- Intl Portable:no

- Hardware:MHX ICE

- Transducer 2:XI 9 20

- Bronze Thru Hull:XTH 9 20

- Plasti
