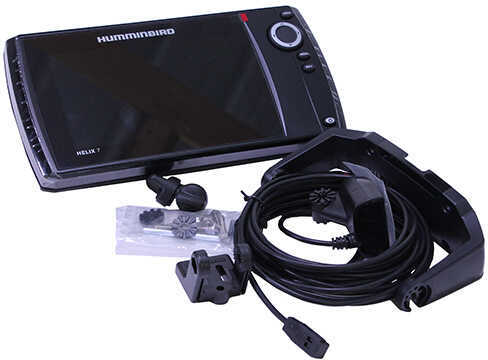

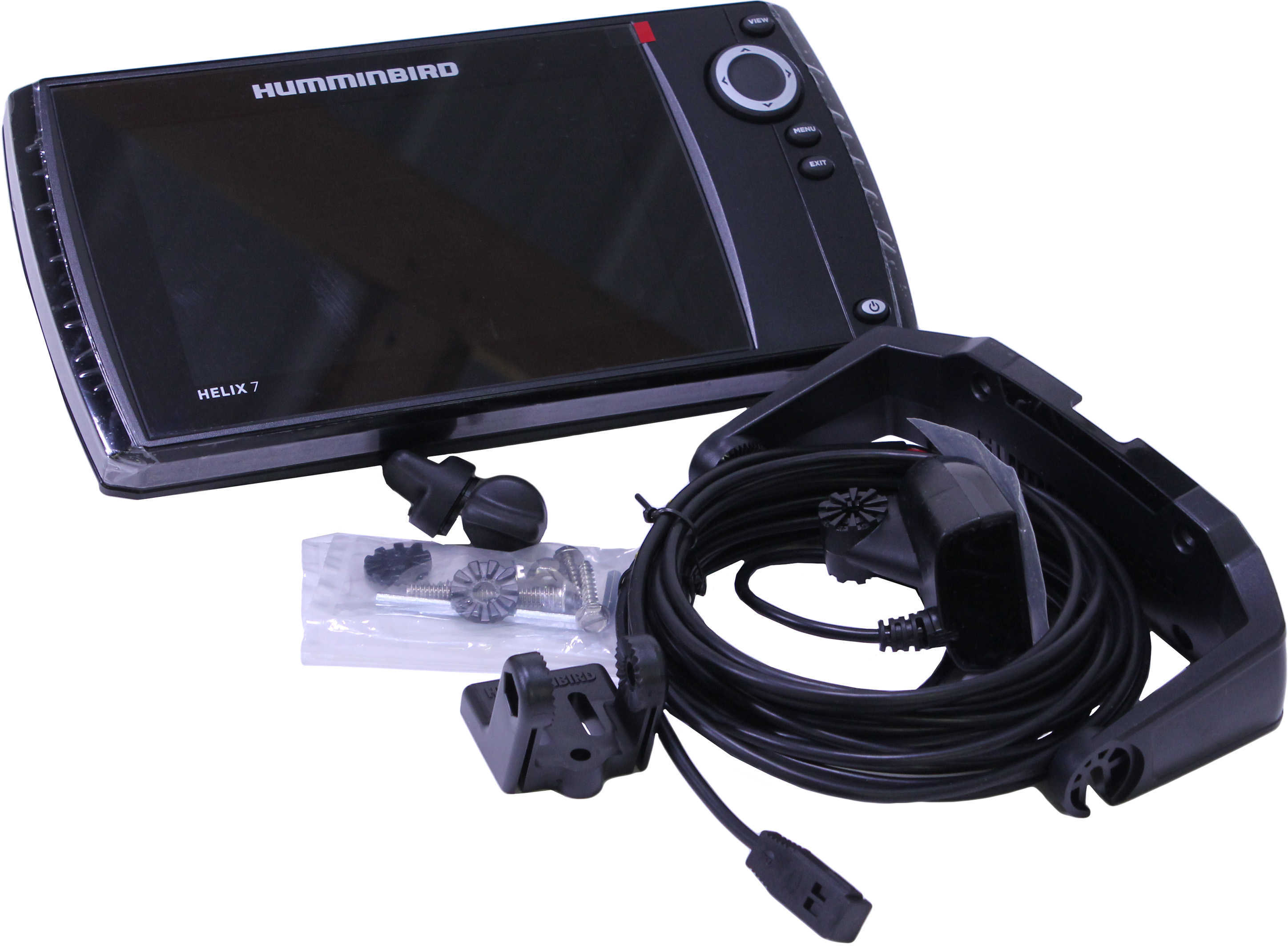

Humminbird Helix 7 Sonar G2 Md: 410270-1

Humminbird Helix 7 Sonar G2 Sonar G2 Md: 410270-1
The HELIX 7 Sonar G2 with the user interface and operating system, features a brilliant 800H x 480V, 7" 9-bit color display with backlight. DualBeam PLUS sonar with 4000 watts PTP power output. Maximize your angling experience with the Humminbird HELIX 7 Sonar G2 fishfinder system.



Features:

- SwitchFire Sonar -- Take command of how your sonar returns appear with Clear and Max Modes

- Dualbeam Plus Sonar: Two beams combine for great detail and a wide coverage area. Use the narrow beam for high-accuracy returns and bottom. Use the wide beam when you want a larger search area

- Up-gradable Software -- Access software updates to enhance the performance of your Humminbird unit through the My Humminbird section of the site

- High Definition Display: Provides bright, crystal-clear images for easy viewing in harsh sunlight.



Specifications:

- Display Size - Diagonal: 7"

- Display Pixel Matrix: 800H X 480V

- Display Type: Color TFT

- Display Colors Grayscale: 16-bit

- Sonar Standard: DualBeam PLUS

- Standard Sonar Coverage: 20° & 60° @ -10db

- Standard Sonar Frequency: 200/83 kHz

- Target Separation: 2.5"

- Power Output RMS: 500 Watts

- Power Output Peak to Peak: 4000 Watts

- Depth Capability: 1500'

- Temperature: Built In Transducer

- Speed: Capable

- Backlight: LED

- Unit Size - Gimbal Mount: 10.54"W x 5.44"H x 1.13"D

- Mount A Type: Gimbal Mount

- Unit Size - Indash Mount: 10.54"W x 5.80"H x 3.68"D

- Mount B Unit Size2: Optional In-Dash

- Mounting Options: Gimbal or Optional In-Dash

- Transducer Standard: XNT 9 20 T

- Transducer Mounting: Transom

- Power Input: 10.8-20 VDC

- Power Draw: 800 mA

- GPS Receiver: Not Supported

- GPS Tracking: Optional

- GPS Chartplotting: Not Supported

- Humminbird Mapping: Not Supported

- Navionics+: Not Supported

- Navionics Platinum+: Not Supported

- Platinum Capable: Not Supported

- C-Map 4D: Not Supported

- SwitchFire Sonar: Included

- Humminbird PC: Not Included

- Upgradable Internal Software: Optional

- Split Screen Zoom: Included

- Split Screen Bottom Lock: Included

- Large Digits View: Included

- Wide/Narrow Cone Split Screen: Included

- Custom View Selections: Included

- Custom Digital Readout: Included

- View Preset Keys: Not Included

- Temperature Graph: Not Supported

- Temperature Alarm: Included

- Freeze Frame: Included

- Instant Image Update: Included

- Mark Structure on Sonar: Not Supported

- Selective Fish ID+: Included

- Real Time Sonar: Included

- Triplog: Optional

- X-Press Menu System: Included

- Card Reader Available: No
