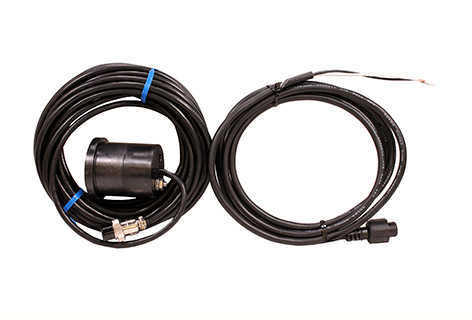

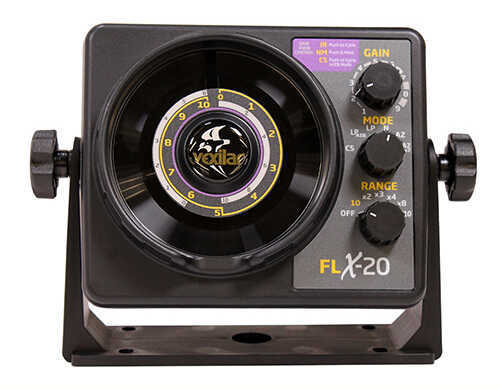

Vexilar FLX-20 19° AlumaDucer, Three-Color Flasher/Fish-Finder

Vexilar Inc. FLX-20 19° AlumaDucer, Three-Color Flasher/Fish-Finder

Vexilar FLX-20, 19°Alumaducer, Three-Color Flasher/Fish-Finder

Features:

- Three-Color sonar display(three color palettes)
- Easy to use three knob control
- Enhanced Interference Rejection w/20 settings
- Target ID of less than 1/4"
- Resolution: 525 segments and target separation of 1/2"(at 10' range setting)
- Deep water depth range mode to 300'
- Split-screen 6' and 12' Auto Zoom
- Built-in low power(LP)mode option
- Low battery alert
- MST Matching Sonar Technology ensures maximum sonar performance and long life by balancing the transmitter and receiver to the transducer crystal
- Super bright LEDs with day and night modes for better visibility

Specifications:

- Fits: All Vexilar high-speed, puck-style and Ice-Ducer transducers
- Operating voltage: 10.5-15 volts (12 volts nominal)
- Current draw: 200 mA @ 12 volts
- Power output: 1000 watts (peak to peak)
- Frequency: 200 kHz
- Dimensions: 4.8"H x 6"W x 2.4"D
- Weight: 1.1 lbs.

Manufacturer: Vexilar Inc.

Model: FMX2023A
