Zeiss Victory V8 4.8-35x60 Rifle Scope Mil-dot #43 Illuminated Reticle Side Focus Parallax Adjustment

Zeiss Victory V8 4.8-35x60 Rifle Scope Mil-dot #43 Illuminated Reticle Side Focus Parallax Adjustment

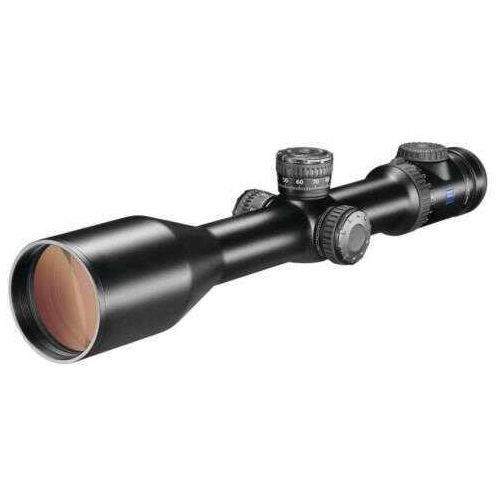

Victory V8 4.8-35x60

The most verstaile riflescope from ZEISS The benchmark model of the Victory® V8 product line. The 35x magnification combined with the BDC/ASV gives ultimate long-range hunting capability. The optical system impresses with maximum detail resolution, thanks to its combination of SCHOTT HT glass and fluoride (FL) lenses.



BDC/ASV LongRange standard

92% light transmission

Reticles: #43 (illuminated reticle)/#60 (illuminated reticle)



US Technical Data

Model 4.8 -35 × 60

Magnification 4.8× 35×

Focal Plane Second

Effective Lens Diameter 48.1 mm - 60 mm

Exit Pupil Diamete 9.9 mm - 1.4 mm

Twilight Factor 13.6 - 45.8

Field of View at 100 yds 24 ft - 3.3 ft

Angular Field of View, Real 4.6° - 0.6°

Diopter Range - 3.5 / + 2 dpt

Eye Relief 3.75 in

Parallax Setting 50 yds - 8

Elevation Adjustment Range 40 MOA

Windage Adjustment Range 26 MOA

Click Value 0.167 MOA

Main Tube Diameter 36 mm

Eyepiece Tube Diameter 46 mm

Objective Tube Diameter 67 mm

Coating LotuTec® / ZEISS T*

Fogproof Nitrogen Purged

Waterproof 400 mbar (submerged 4 meters for 2 hours)

Operating Temperature -13 / +122°F

Length 115.75 in

Weight l35 oz..

Reticles #43 illum., #60 illum.
