Humminbird XPTH 9 HW MSI T HELIX MEGA SI, DI, Dual Spectrum CHIRP Temp

Humminbird XPTH 9 HW MSI T HELIX MEGA SI, DI, Dual Spectrum CHIRP Temp

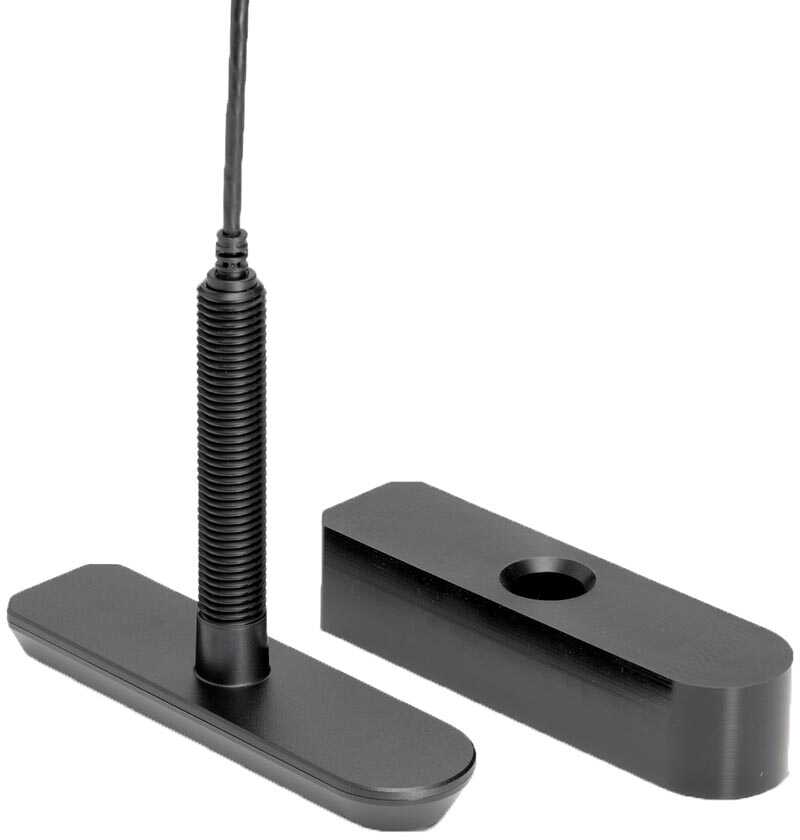

MEGA Side Imaging+ Plastic Thru-Hull Transducer supports MEGA Imaging/800kHz/455kHz and Dual Spectrum CHIRP 2D Sonar with a CHIRP range of 150-220kHz. Includes built-in temperature sensor, rugged composite design and 30’ cable.



Features :

- Dual Spectrum CHIRP Frequencies: Full: 150-220 kHz, Narrow: 180-240 kHz, Wide: 140-200 kHz

- Dual Spectrum CHRIP Max Depth: 1200' (365m)

- MEGA Side Imaging+ Frequencies - Max Range (side-to-side): 455kHz: 440-500 kHz - 800' (244m), 800kHz: 790-850 kHz - 250' (76m), MEGA SI+: 1075-1150 kHz - 400' (m)

- MEGA Down Imaging+ Frequencies - Max Depth: 455kHz: 440-500 kHz - 400' (122m), 800kHz: 790-850 kHz - 125' (38m), MEGA DI+: 1075-1150 kHz - 200' (61m)



Specifications :

- Compatible with the following Humminbird products: HELIX 8 CHIRP MEGA SI+ GPS G3N, HELIX 9 CHIRP MEGA SI+ GPS G3N, HELIX 10 CHIRP MEGA SI+ GPS G3N, HELIX 12 CHIRP MEGA SI+ GPS G3N

- Mount Type: Thru-Hull

- Sonar Type: MEGA Imaging +, Dual Spectrum

- Current Models: HELIX 8, HELIX 9, HELIX 10, HELIX 12

Manufacturer: Humminbird

Model: 710284-1
