Garmin International Panoptix LiveScope System Thru-Hull
Clearly, this is the most amazing sonar technology ever. You have never fished like this before. Panoptix LiveScope is live, real-time scanning sonar. You can actually see easy-to-interpret live scanning sonar images of fish swimming near clearly defined structure. You can even see your lure as you retrieve it. And your boat doesn’t need to be moving. These images are so clear and precise that with a little practice, you might be able to distinguish between species of fish!
LiveScope Forward is an excellent tool for scouting and fishing out ahead of your cast. You’re looking at live, highly detailed and easy-to-interpret scanning sonar images of structure and fish swimming all around your boat — up to 200’ — even while your boat is stationary.

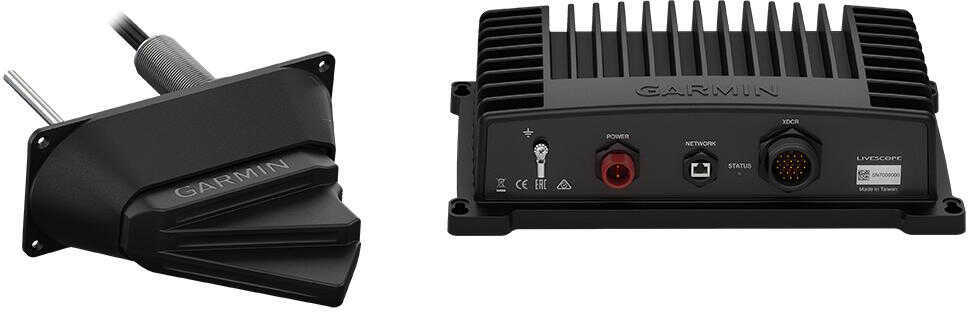

The Panoptix LiveScope scanning sonar system includes a compact GLS 10 sonar black box with LVS32 thru-hull transducer and simple plug-and-play Garmin Marine Network connector, making it easy to install and seamlessly integrate with your compatible Garmin chartplotter¹. Use the transducer as a supplemental traditional and ClearVü sonar source to see a historical representation of structure and fish below your boat.
Features:
- See highly detailed, easy-to-interpret live scanning sonar images of structure, bait and fish swimming below and around your boat in real time, even when your boat is stationary
- See incredibly sharp real-time scanning sonar images up to 200’ around your boat
- Attitude Heading Reference System stabilizes sonar view on chartplotter screen, even in rough conditions
- Simple plug-and-play Garmin Marine Network connector makes it easy to install and seamlessly integrate with your compatible Garmin chartplotter1
Package Includes:
- LiveScope GLS 10 Sonar Black Box
- Panoptix LVS32 Transducer
- Thru-Hull Mount Hardware
- Power Cable
- 2m Garmin Marine Network Cable, Small cCnnector
- Network Adapter Cable
- Mounting Hardware
- Documentation
Specifications:
General:
Dimensions:
- GLS 10 Sonar Black Box: 9.60" x 5.90" x 2.60"
- LVS32-TH Transducer without Fairing Block: 9.60" x 5.40" x 1.80"
- LVS32-TH Transducer with Fairing Block: 9.60" x 8.10" x 3.40"
Weight:
- GLS 10 Sonar Black Box: 4.30 lbs
- LVS32-TH Transducer without Fairing Block: 4.40 lbs
- LVS32-TH Transducer with Fairing Block: 5 lbs
- Water Rating: IPX7
- Garmin Marine Network Ports: 1 (Small Connector)
- Temperature Range: GLS 10 Black Box: Operating: -15 C to 70 C and Panoptix LiveScope LVS12 Transducer: Operating: 0 C to 40 C
Sonar Features and Specifications:
- Frequencies Supported: 530 - 1,100 kHz
- Transmit Power: 500 W
- Maximum Depth: Forward: 200’ (61.0 m)
Electrical:
- Power Input: 10-32 V
- Power Usage: 21 W Typical, 58 W Maximum
- Fuse: 7.5 A
- Beam Width: 20° x 135°
- Transducer Cable Length: 20'
- Transducer Number of Pins: 21
Compatible With:
- GPSMAP 7407xsv
Specification | Value | |
---|---|---|
MFG NO | 010-02233-00 | |
SKU | 11393734 | |
UPC | 753759225384 |
