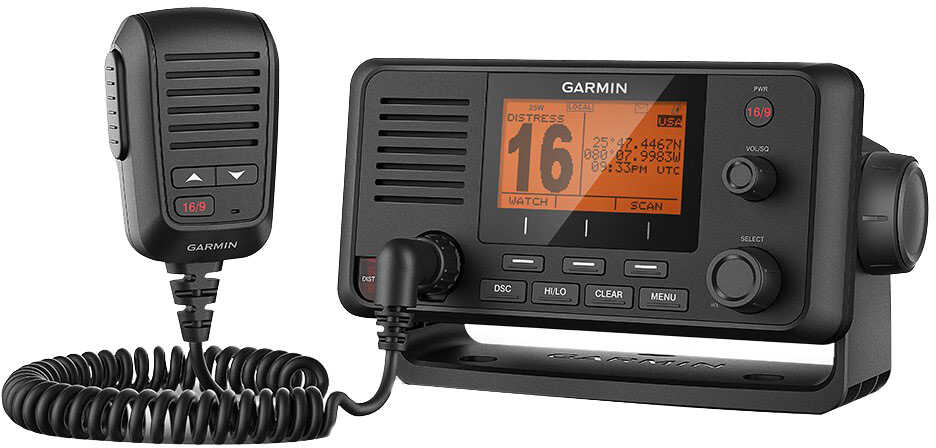

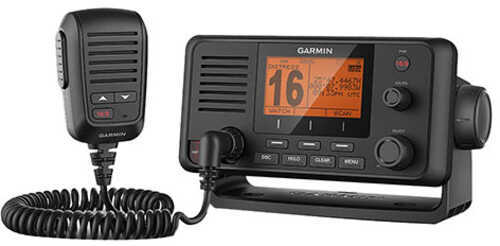

Garmin International VHF 210 AIS Marine Radio
Communication and situational awareness are critical on the water. This fixed-mount VHF 210 AIS radio displays AIS on the chartplotter to enhance communication, situational awareness and collision avoidance between you and other mariners worldwide.
Features:
- Increase Your Peace of Mind
- Communicate Confidently on the Water
- Communicate with Style
- Displays Automatic Identification System (AIS) on the chartplotter
- Standard Class D Digital Selective Calling (DSC) functionality (distress calling and direct calling with user programmed MMSI)
- In case of trouble, DSC may improve your chances of a rapid rescue
- 25 W of transmit power
- Frequency bands: all U.S., Canadian and international marine channels; 10 NOAA weather channels
Package Includes:
- VHF 210 AIS Marine Radio
- Removable Fist Mic
- Fist Mic Mounting Bracket and hHrdware
- Bail Mount with Knobs and Mounting Hardware
- Protective Cover
- Trim ring Snap Cover
- Flush Mount Gasket
- Power Cable
- Documentation
Specifications:
- Dimensions: 7.80" x 5.80" x 3.90"
- Weight: Radio without Microphone: 42.80 oz and Microphone: 8.80 oz
- Water Rating: IPX7
- Temperature Range: Operating: 5ºF to 158ºF and Storage: -4ºF to 158ºF
- Compass-safe Distance: 29 1/2"
- NMEA 2000: Yes
- NMEA 0183: Yes
- AIS: Yes (When Connected to NMEA 2000)
- Digital Selective Calling: Class D
- Frequency Bands: All USA, Canadian, and International Marine Channels; 10 NOAA Weather Channels
- Operating Voltage: 10.8 - 15.6 Vdc
- Current Draw: Standby 350 mA; Receive 600 mA; Transmit from 2.0 A to 6.0 A (from 1 W to 25 W)
- Frequency Range: 156.050 MHz to 163.275 MHz (Including WX Channels)
- Hailer Output Power: 20 W at 4 O
- Hailer Horn Impedance: 4 O
- External Speaker Impedance: 4 O
- Antenna Connector: S0-239 (50 O)
- Maximum Antenna Gain: 9 dBi
Manufacturer: Garmin International
Model: 010-01654-00
Specification | Value | |
---|---|---|
MFG NO | 010-01654-00 | |
SKU | 11397114 | |
UPC | 753759158927 |
Garmin | ||
Phone: | 913-397-8200 | |
Email: | ||
Website: | http://www.garmin.com | |
Address: |
1200 East 151st Street Olathe, KS 66062 |
