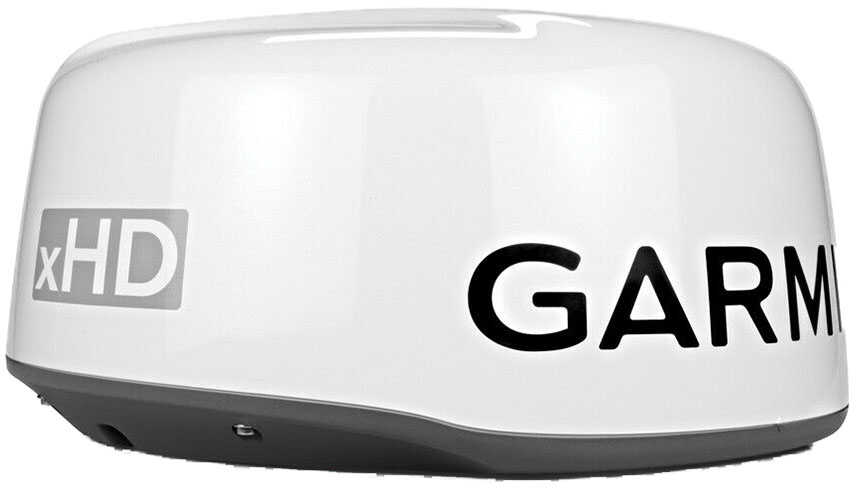

Garmin International GMR 18 xHD Radome

Garmin International GMR 18 xHD Radome

Garmin's next-generation, 4 kW high-definition GMR 18 xHD dome radar pairs ease of use with advanced open-array features. Its intuitive operation makes modes and settings simple to understand so you can enjoy great performance without a lot of technical know-how.

The GMR 18 xHD delivers higher resolution than our previous generation 18” dome radars. New Dynamic Auto Gain and Dynamic Sea Filter continually adjust to your surroundings, providing optimal performance in varying conditions. Choose from multiple levels of aggressiveness or use manual gain adjustment. Dual range operation allows fully independent split-screen display of far and close radar views in full 8-bit color (select chartplotters); range of 48 nm. Optional “No Transmit Zone” can protect areas behind the radar from being radiated while providing full forward-looking radar capability.

Features:

- 4 kW high-definition 18” dome radar
- Pairs ease of use with advanced open-array features
- 48 or 24 RPM rotation speeds for fast screen refreshes, auto adjusts as needed based on range
- 48 Mile max range setting
- No complex user settings, easy to install and start using

Package Includes:

- GMR 18 xHD
- Mounting Hardware Kit
- Power Cable (49.21')
- Network Cable (49.21')
- Installation Instructions
- Mounting Template
- Grommet for Marine Cable

Specifications:

- Dimensions: 20"Diameter and 9 3/4" High
- Weight: 17 lbs
- Water Rating: IPX7
- Power Consumption: 30 W Typical; 48 W Max
- Antenna Length: 17"
- Rotation Speed: 24/48 RPM (Dual Rotation)
- Transmit Power: 4 kW
- Power Input: 11-35 V DC
- Beam Width: 5.20° Horizontal and 25° Vertical
- Maximum Range: 48 nm
- Minimum Range: 20 Meters
- Radar Type: Radome

Manufacturer: Garmin International

Model: 010-00959-00
