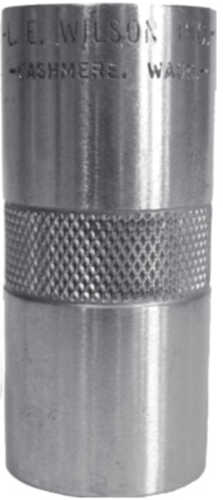

L.E. Wilson Cartridge Case Gage 300 WSM

L.E. Wilson Cartridge Case Gage 300 WSM

ADD TO CART
NOTIFY ME WHEN AVAILABLE
Related Products:
Product Summary

L.E. Wilson Cartridge Case Gauge 300 WSM Technical Information: Material: Steel Precision Machining -This is a one-piece and non-adjustable cylinder-type gage for checking fired and resized cartridge cases for cone-to-head and overall length -Used to compare cartridges against the minimum SAAMI chamber dimensions Instructions: -Drop a fired case into the gage. Take a measurement on headspace. This can be done with either a depth micrometer or caliper (Depending on if the case is sitting high or low in the gage). If the case sticks out past maximum headspace the firearm probably has a larger than average chamber. The gage can still be used because it is being used to determine how much resizing is required. -Now once the initial measurement is taken and slowly dial in the full length sizer until there is a 0.001 to 0.002 drop in headspace. This will give the measurement to resize the case just below the chambers headspace in the firearm being reloaded for and giving a more accurate shot and saving brass by not causing it to be overworked. -Once the brass has been sized and set the brass in the gage and set the gage on a flat surface with the head side facing down. Now look across the top of the gage and this give the maximum and minimum for trim length.

Specifications
Specification   Value

MFG NO    CG30SM
SKU    11550788
UPC    NOUPC375100
Manufacturer
L.E. Wilson
Phone:   509-782-1328
Email:   support@lewilson.com
Website:   http://www.lewilson.com
Address:   404 Pioneer Ave
P.O. Box 324
Cashmere, WA 98815
