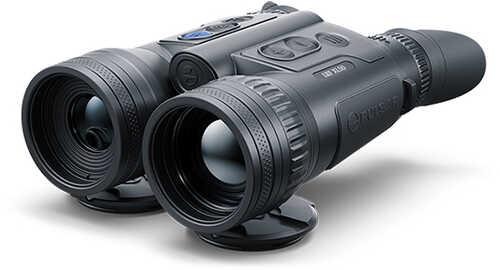

PULSAR MERGER LRF XL50
Main
Sensor HD 1024x768 @ 12 µm (NETD <40 mK)
Objective lens F50/1.0
Magnification, x 2.5-20 (x8 zoom)
Field of view (HxV), degrees / m@100m 14x10.5 / 24.6x18.5
Detection range, m 2300
Sensor
Type uncooled
Resolution, pixels 1024x768
Pixel pitch, um 12
NETD, mK <40
Frame rate, Hz 50
Optics
Objective lens F50/1.0
Magnification, x 2.5-20
Field of view (HxV), degrees / m @ 100 m 14x10.5 / 24.6x18.5
Interpupillary distance adjustment, mm 62-74
Eye relief, mm 15
Display
Type AMOLED HD
Resolution, pixels 1024x768
Range Performance
Detection range, m 2300
Laser Rangefinder
Safety class for laser equipment according to IEC 60825-1:2014 1
Wavelength, nm 905
Max. measuring range, m 1000
Measurement accuracy, m ± 1
Video Recorder
Video / photo resolution, pixel 1024x768
Video / photo format .mp4 / .jpg
Built-in memory, GB 16
Wi-Fi
Wireless Protocol Wi-Fi
Wireless Standard IEEE 802.11 b/g/n/ac (WPA)
Frequency, GHz 2.4 / 5
Environmental Characteristics
Degree of protection, IP code (IEC60529) IP?7 (waterproof)
Operating temperature range, °? -25-+50
Connections and Compatibilities
Mount, type 1/4" socket
Supported Application Stream Vision 2
Power Supply
Output voltage, V 3.7
Battery type Dual Li-Ion Power System: 3.2 A·h Changeable Battery (external) / 4.0 A·h Battery (internal)
Capacity, mAh 3200 (external) + 4000 (internal)
Operating time on battery pack (at t=22°C), h * 8
External power supply, V 5 (USB Type C)
Weight & Size
Body material Magnesium alloy
Dimensions, mm 197x140x72
Weight, kg 0.95 (batteries included)
