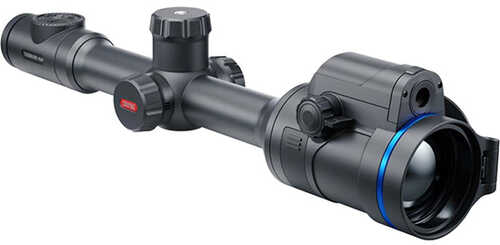

Pulsar THERMION Duo DXP55

Pulsar Thermion Duo Dxp55



Main

Sensor 640x480 pix. @ 17 µm (thermal) | CMOS 3840x2160 (digital)

Objective lens F50/1.0 (thermal) | F35/4.34 (digital)

Magnification, x 2-16 (thermal) | 4-32 (digital)

Field of view (HxV), degrees / m@100m 12.4x9.3 / 21.8x16.4 (thermal channel on minimal magnification) | 6.1x4.6 / 10.6x8 (digital channel on minimal magnification)

Detection range, m 1800 (thermal detection)

Sensor

Type Uncooled (thermal) | Full-color CMOS (digital)

Resolution, pixels 640x480 (thermal) | 3840x2160 (digital)

Pixel pitch, um 17 (thermal)

NETD, mK <25

Frame rate, Hz 50

Optics

Objective lens F50/1.0 (thermal) | F35/4.34 (digital)

Magnification, x 2-16 (thermal) | 4-32 (digital)

Field of view (HxV), degrees / m @ 100 m 12.4x9.3 / 21.8x16.4 (thermal channel on minimal magnification) | 6.1x4.6 / 10.6x8 (digital channel on minimal magnification)

Eye relief, mm 50

Display

Type AMOLED HD

Resolution, pixels 1024x768

Range Performance

Detection range, m 1800 (thermal detection)

Reticle

Click value, H/V, mm at 100 m 21.25 / 21.25 (thermal channel) | 10.33 / 10.33 (digital channel)

Click range, H/V, mm at 100 m 4250 / 4250 (thermal channel) | 2066 / 2066 (digital channel)

Number of preloaded reticles 10

Video Recorder

Video / photo resolution, pixel 1024x768

Video / photo format .mp4 / .jpg

Built-in memory, GB 16

Wi-Fi

Wireless Protocol Wi-Fi

Wireless Standard IEEE 802.11 b/g/n/ac (WPA)

Frequency, GHz 2.4 / 5

Environmental Characteristics

Degree of protection, IP code (IEC60529) IPX7

Operating temperature range, °? -25-+50

Connections and Compatibilities

Max. recoil power on rifled weapon (Eo), Joules 6000

Shock resistance on the smooth-bore rifles, caliber 12

Compatible mounts Standard 30 mm rings

Supported Application Stream Vision 2

Power Supply

Output voltage, V 3.0-4.2

Battery type Li-Ion Battery Pack ?PS2 (external) + Li-Ion Battery Pack APS5 (internal)

Capacity, mAh 2000 (external) + 4900 (internal)

Operating time on battery pack (at t=22°C), h * 6

External power supply, V 5V, 9V (USB Type-C Power Delivery)

Weight & Size

Body material Aluminum alloy

Dimensions, mm 420x78x83.5

Weight, kg 0.96 (batteries included)
