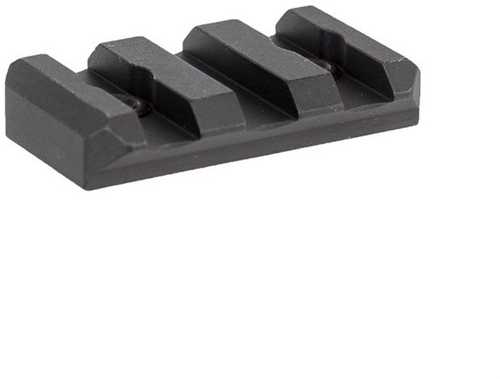

Low Profile Picatinny Rail

Low Profile Picatinny Rail

Color: Black
Length: 1.37
Material: Aluminum
Style: Keymod


Manufacturer: Arisaka Defense
Model: The Arisaka Low Profile Picatinny Rail is a 5 or 3 slot Picatinny rail for M-Lok handguard systems. It offers a reduced height to pull any Picatinny accessories closer to the handguard. The 5 slot model connects with three M-Lok nuts which will spread the increased stress of large Picatinny accessories like bipods or vertical grips over more M-Lok slots. The 3 slot version is useful when less rail space is required.

Both sizes are compatible with the Arisaka Rail Slider.

Picatinny slots: 5 or 3

Height over mounting surface: 0.277"

Length: 2.15" (5 slot), 1.37" (3 slot)

Weight: 0.7 oz (5 slot), 0.4 oz (3 slot)

The Low Profile Picatinny Rail is CNC machined from 6061-T651 aluminum and MIL-A-8625 Type III hard coat anodized. Requires an IP25 or T25 Torx driver for installation (not included).

Hardware: Two or three M-Lok nuts, two or three 10-24x5/16" Torx button head screws.

Made in the USA.

M-Lok Installation Guide
