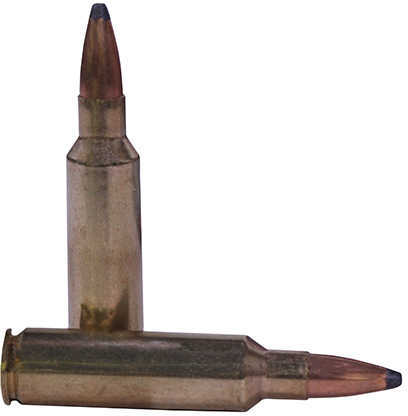

Super-X Power-Point's unique exposed soft-nose jacketed bullet design delivers maximum energy on target. Strategically placed notches around the jacket mouth improve upset and ensure uniform expansion for massive energy release.
Symbol: X300WSM
Caliber: 300 Winchester Magnum
Bullet Weight: 180 Grains
Bullet Type: Power Point
Game Selector Guide: Deer, Open or Plains, Medium Game, Large Game
CPX Guide Number: 3 (large, heavy game)
Test Barrel Length: 24"
Velocity (Feet Per Second):
- Muzzle: 2970
- 100yds: 2755
- 200yds: 2549
- 300yds: 2353
- 400yds: 2166
- 500yds: 1987
Energy (Foot Pounds):
- Muzzle: 3526
- 100yds: 3034
- 200yds: 3598
- 300yds: 2214
- 400yds: 1875
- 500yds: 1578
Trajectory, Short Range:
- 50yds: 0.1
- 100yds: 0.6
- 150yds: 0
- 200yds: -1.9
- 250yds: -5.0
- 300yds: -9.7
Trajectory, Long Range:
- 100yds: 1.5
- 150yds: 1.4
- 200yds: 0
- 250yds: -2.7
- 300yds: -6.9
- 400yds: -20.1
- 500yds: -40.7

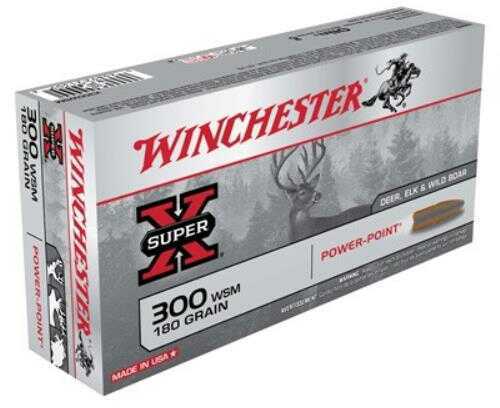

300 WSM, 180gr, Super-X Power-Point, (Per 20)
Specification |
|
Value |
Warranty |
|
Warranted against manufacturers defects. |
Caliber |
|
300 Winchester Short Magnum |
Weight |
|
180 Grain |
Bullet Type |
|
Soft Point |
|
|
|
MFG NO |
|
X300WSM |
SKU |
|
13655 |
UPC |
|
020892213098 |
The Below Information Has Been Provided From Our Gun Caliber Dictionary And Is Meant For Informational Purposes Only. It Is Not Intended to Describe The Unique Specifications For This Ammunition.
The 300 Winchester Short Magnum (WSM) was introduced in 2001, the first of what would be several short, fat, unbelted magnums from Winchester, Remington, and Hornady. The theory (and reality) is that burning is more efficient when the propellant column is wider in relation to its length, allowing the primer to ignite a greater percentage of the charge. The burning curve is more efficient, and slightly more energy per grain of propellant is produced. Using a 2.1-inch case, the 300 WSM fits into a short (308 Winchest-length) action, yet produces velocity almost equal to the 300 Winchester Magnum, as examples a 150-grain bullet at 3270 feet per second and a 180-grain bullet at 2970. The 300 WSM was first in its class, and America loves its 30-calibers. As a result the 300 WSM has been the most popular of the new short, fat magnums, with ammunition from multiple sources and rifles chambered by numerous manufacturers. —
Craig Boddington
