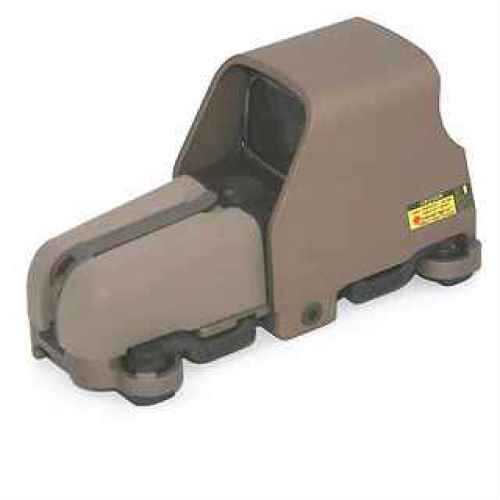

EOTech 553 Military Red Dot Dark Earth Cr123 Lithium Battery 553Tan

EOTech 553 Military Red Dot Dark Earth Cr123 Lithium Battery 553Tan

SKU:
71448
Manufacturer:
ADD TO CART
NOTIFY ME WHEN AVAILABLE
Related Products:
Product Summary

After extensive testing of various optical sights, US Special Operations Command has standardized on the HWS as its 1X weapon optic for close quarter, urban combat zones. To meet the stringent requirements set and demanded by our elite fighting forces, L-3 EOTech has developed the SU-231/PEQ (Model 553), modeled after the ever popular, battle proven HWS design. The SU-231/PEQ (Model 553) incorporates many additional features required within the SOPMOD Block 2 program.



Standardized as the weapon sight of choice by America's warrior elite, the US Special Operations Command.



Features :

- Flat Dark Earth hood/base/battery cap with black housing

- USSOCOM standardized, Type Classified SU-231/PEQ

- Dual ARMS throw levers with 7mm raised base

- 66ft. submersion rating

- CR123 Lithium battery

- 65MOA ring/1MOA dot reticle pattern



Specifications :

Operation :

- Optics: Transmission holography - parallax free

- Magnification: 1x

- Eye Relief: Unlimited

- Length/Width/Height: 4.9"x1.8"x2.8" (124x49x71 mm)

- Weight: 14 oz

- Temperature: -40 to 150 F

- Waterproof: Submersible to 66 ft depth

- Sealing: Fogproof internal optics

- Color/Finish: Flat Dark Earth (non-reflective black on some small components) or Non reflective black with hard coat finish

- Adjustment (per click): 0.5 MOA (1/2" at 100 yds)

- Adjustment Range: +/- 40 MOA travel

- Mount: USSOCOM requirements dictated dual quick release throw levers designed specifically for the Picatinny (MIL-STD-1913) mounting rail : - Certain commercial variants of the MIL-STD-1913 rail specification may not be compatible with the SU-231/PEQ (M553) mounting assembly.

- The SU-231/PEQ (M553) base consists of (2) ARMS® throw levers and is only adaptable to rails that properly accept the ARMS® design.

- Return to Zero: Repeatable to 1 MOA after re-mounting

- Heads-Up-Display Window

- Optical Surfaces: Anti-glare coating

- Window Dimensions: 1.20" x 0.85" (30 x 23mm)

- Front Window Material: 1/8" solid glass

- Rear Window Material: Shatter resistant laminate (3/16" thick)

- Field of View (100 yds): 30 yds (28m) at a 4" eye relief

- Standard Reticle: 65MOA circle with quadrant ticks with 1 MOA aiming dot



Electrical :

- Brightness Adjustment Range: 146,000:1 brightest to lowest

- Night Vision Brightness Range: 1280:1 with NV switch engaged

- Power Source: 2 x 123 lithium batteries

- Battery Life: 1100 continuous hours at nominal setting 12

- Brightness Settings: 30 settings with scrolling feature (10 settings for NV use)

- Auto Battery Check Indicator: Flashing reticle upon start-up

- Auto Shut-down: At 8 hrs- programmable to 4 hrs

A65TAN 65 MOA Ring/1MOA Dot

Specifications

Manufacturer: EOTech

Manufacturer No : 553.A65TAN

SKU : 71448

UPC : 672294536512

Manufacturer
EOTech
Phone:   734-741-8868
Email:   general@l-3com.com
Website:   http://www.eotech-inc.com
Address:   1201 E Ellsworth
Ann Arbor, MI 48108
