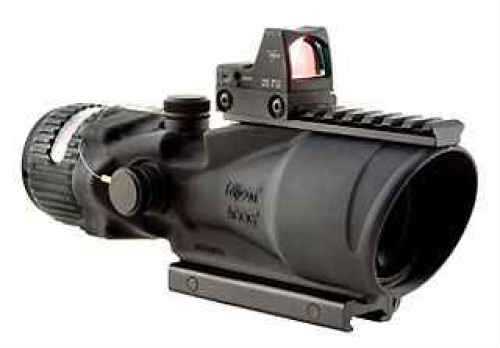

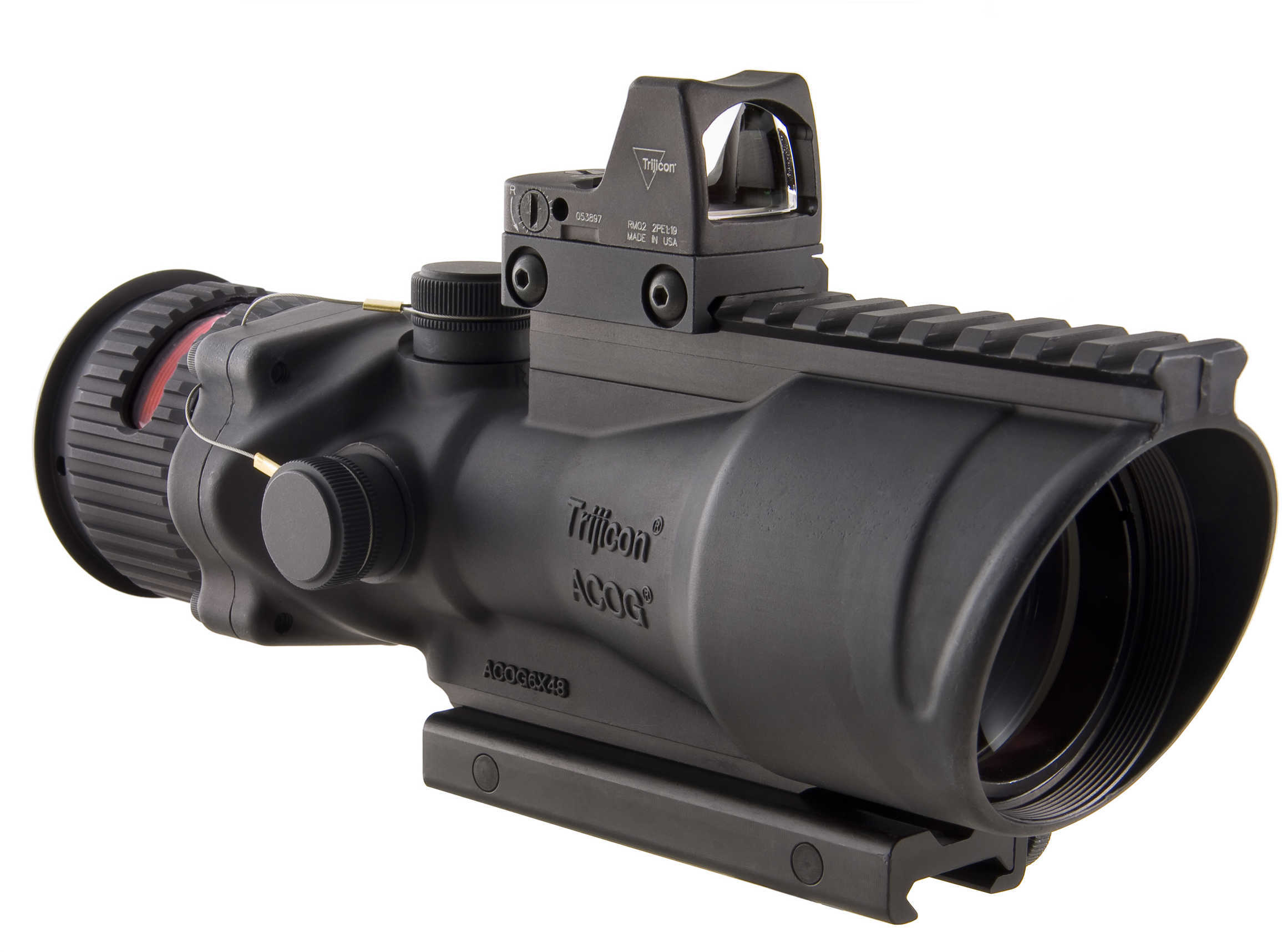

Trijicon ACOG 6x48 Illuminated Red Chevron .223 8.0 Minutes Of Angle TA648RMR

The military's need for a magnified, self-luminous tactical sight that enhances target identification and increases hit probability on extended-range shots has given rise to the new Trijicon ACOG 6x48. Powered by Trijicon's patented fiber optics and tritium-based technology, the TA648RMR ACOG reticle features a red chevron aiming point. It also incorporates a bullet drop compensator (BDC) with additional aiming points estimated for trajectory of the 5.56mm M855 out to 800 meters. To further improve target acquisition and hit potential, the ACOG 6x48 incorporates Trijicon's Bindon Aiming Concept (BAC) – a revolutionary both-eyes-open method of aiming.

Like other members of the Trijicon ACOG line, the ACOG 6x48 is battery free and waterproof to 500 feet.

This model of the 6x48 ACOG features an 8.0 MOA RMR.

The TA648RMR also includes:

- 1 8.0 MOA RMR Sight (RM02)
- 1 Picatinny Rail Adapter (TA75)
- 1 LENSPEN (LENSPEN)
- 1 Trijicon Logo Sticker (PR15)
- 1 Manual
- 1 Warranty Card

Specifications:

- Magnification: 6.0
- Objective Size: 48.0
- Bullet Drop Compensator: Yes
- Length (in): 9.00
- Weight (oz): 39.3 w/out RMR
- Illumination source: Fiber Optics & Tritium
- Reticle Pattern: Chevron
- Day Reticle Color: Red
- Night Reticle Color: Red
- Calibration: 0.223
- Bindon Aiming Concept: Y
- Eye Relief (in): 2.70
- Exit Pupil (mm): 8.00
- Field of View (°): 3.30
- Field of View @ 100yrds (ft): 17.00
- Adjustment @ 100 yds (clicks/in): 4.0
- Mount: TA75
- Mount On/Comes With: TA75
- Housing Material: Forged Aluminum

6x48 Illuminated Red Chevron .223 8.0 Minutes Of Angle
