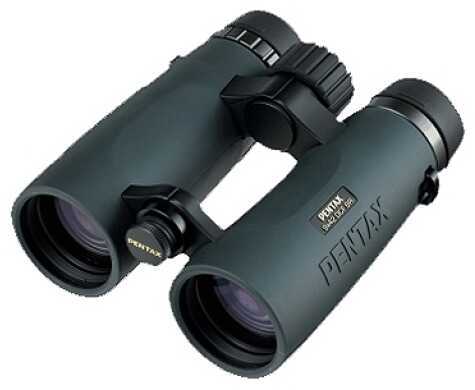

DCF BR features high-performance optics, a waterproof construction allowing fresh-water rinsing, and an ergonomic body design for a comfortable hold. An additional coating (super-reflection) is applied to the auxiliary prisms to further enhance light transmittance. Combining outstanding optical performance and value with a compact, lightweight, carry-anywhere body, these new models may be used in a wide range of applications including nature observation, bird-watching, sports viewing, hunting and more. The new DCF series features an open-bridge configuration for a firm, comfortable hold. Protected with a rubber housing that features slight indentations for the user's thumbs, each model offers stable, fatigue-free observation, even while users continuously track a moving subject during extended observation.
Includes:
- Case
- Eyepiece Caps
- Neck Strap
- Objective Cap
Specifications:
- Product Type: Roof Prism, Center Focusing, Internal Focus, Open Bridge Design
- Objective Lens: 4 elements, 3 groups
- Focusing Range: 2.5m to infinity (8.2' to infinity)
- Eyepiece: 4 elements, 3 groups
- Lens: Full Multi Coating
- Prism: Phase Coating
- Sub Prism: Super Reflection
- Objective Lens Diameter: 42mm
- Specifications: 9X
- Apparent Field Of View: 51.2 degrees
- Real Field Of View: 6.1 degrees
- Field Of View at 1000m: 107m (321')
- Exit Pupil: 4.7mm
- Eye Relief: 18mm
- Relative Brightness: 22.1
- Diopter Adjustment Range: +/- 4m
- Eye Width Adjustment Range: 56-74mm (2.2 2.9”)
- Eyepiece Ring: Helicoid (4 stops)
- Body Color: Dark Green with Black
- Height Width: 147 x 128mm (5.8 x 5.0”)
- Thickness: 59mm (2.3”)
- Weight: 665g (23.5 oz.)
- Waterproof: Yes (JIS Class 6, submersible to 1m, nitrogen-filled)
Specification | Value | |
---|---|---|
MFG NO | 62598 | |
SKU | 77730 | |
UPC | 027075182417 |
Pentax | ||
Phone: | 303-799-8000 | |
Email: | ||
Website: | http://www.pentaxsportoptics.com | |
Address: |
633 17th Street Ste 2600 Denver, CO 80202 |
Quantity Available | Price |
---|
