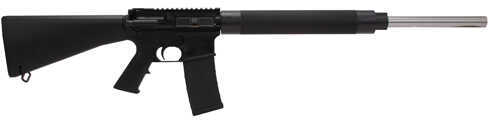

Barrels are engraved CMMG MPC 5.56 NATO 1:9. Each upper is head spaced and test fired before shipping. The upper is built off of our standard forged A3 receiver with M4 feed ramps. The barrel is 4140 steel, Bull Barrel profile, 5.56mm chamber and bore and 1:9 twist ratio.
Specifications :
- 5.56x45 NATO chamber
- 1:9 twist
- 11 degree recessed target crown
- Stainless Steel Barrel
- Forged M4 upper receiver is T marked and has M4 feed ramp cuts
- Semi Auto bolt carrier
- Mil-spec .250 diameter take-down pins
Standard Trigger
Caliber Dictionary
The Below Information Has Been Provided From Our Gun Caliber Dictionary And Is Meant For Informational Purposes Only. It Is Not Intended to Describe The Unique Specifications For This Ammunition.
The 5.56X45mm NATO cartridge was designed by James Sullivan, a member of Eugene Stoner's engineering team that developed both the M16 rifle and its original cartridge. The 5.56X45mm NATO was adopted by the U.S. military in 1964 and by NATO in 1980. With bullet diameter of .224-inch, the original M193 military cartridge used a 55-grain bullet at 3250 fps; the current M855A1 cartridge, developed by FN, uses a 62.5-grain bullet at 3020 fps, offering greater range and better penetration. The civilian version of the 5.56X45mm is 223 Remington; the cartridges are dimensionally identical but military chamber dimensions and specifications for military brass are different. It is considered safe to use 223 Remington ammo in a 5.56X45MM NATO chamber, but not a good idea to use 5.56X45mm ammo in a rifle specifically chambered for the 223 Remington. Although the stopping power of .22-caliber bullets remains controversial the 5.56X45mm has served well in now multiple generations of M16 rifles. — Craig Boddington
