The M6A2 Pistol has all of the standard features of the M6A2 rifle except the standard buffer tube and stock have been replaced with a shortened recoil system. The standard features found in our guns include our patented self-regulating short-stroke gas-piston system, NiCorr treated hammer-forged barrels, and nickel-boron coated bolt group. This configuration is a pistol; The addition of a stock or a forward pistol grip requires prior approval from the BATFE for the creation of an SBR or AOW.
LWRCI has engineered a complete solution to the deficits found in the direct impingement M16/AR15/M4 family of rifles and carbines. The principal improvement comes from the incorporation of our patented self-regulating short-stroke gas-piston system. This system eliminates the venting of hot, carbon-laden gases into the receiver and bolt carrier group, thus eliminating the intensive cleaning regime of the legacy rifle. It also means the bolt carrier group and associated springs are not subjected to the searing heat of the tapped gasses, this being one of the major causes of small parts failure. This translates into pistols that are far more reliable than the legacy direct impingement carbines regardless of user maintenance.
Another benefit of our short-stroke gas-piston system is the improved handling characteristics of our weapons over the direct impingement legacy weapons. Recoil is lighter and muzzle rise is greatly reduced. Amazingly, this is accomplished in a carbine that is ergonomically identical, weighs almost the same, and retains 80% parts commonality with the legacy direct impingement carbine.
But our revolutionary short-stroke gas-piston system is only one of the improvements we've made in the legacy carbine. LWRCI rifles and carbines utilize cold hammer forged barrels made out of 41V45 steel alloy and treated with NiCorr surface conversion technology. Cold hammer forging takes an oversized barrel blank, and using high pressure rotary hammers, compacts the barrel blank over a mandrel. This forms perfect rifling devoid of tool marks. It also compacts the molecular structure of the metal making it denser and stronger. These barrels can take a lot more use and abuse than a standard barrel before any degradation in accuracy or loss of velocity. NiCorr surface conversion has proved more lubricious, harder wearing, more heat and corrosion resistant than the hard chrome normally used in the bore. Our barrels can handle 20,000 rounds before replacement, as compared to 6,000-10,000 rounds on a standard M4.
The bolt carriers of all LWRC guns are now coated with a proprietary nickel coating that nearly eliminates corrosion while providing greatly increased lubricity. This coating provides permanent lubrication to the moving parts. This nickel coating is similar to that being used by the US Army Research Lab and USSOCOM to extend the service life of their weapons systems.

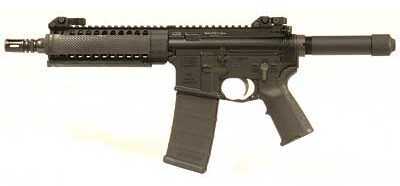

- LWRC M6A2-P Piston Pistol
- 5.56 NATO caliber
- 8" hammer forged 41V45 steel barrel
- 1:7 twist
- NiCorr surface conversion
- 30 round magazine
- Self-regulating short-stroke gas-piston system
- Advanced Combat Bolt
- Nickel-boron coated, anti-tilt bolt carrier
- Freefloat rail system
- Magpul MIAD grip
- Troy folding front and rear sights
- A2 Flash Hider
- 21.5" overall length
- 5.5 lbs unloaded
