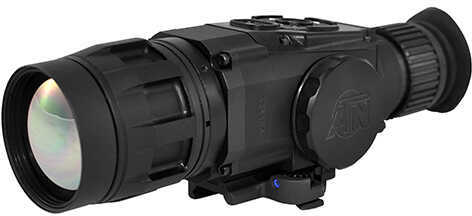

ATN Corporation ThOR-336, 4-16x, 50mm, 60Hz Thermal Rifle Scope
The ATN ThOR is the cadillac of thermal weapon sights.Designed with the hog hunter and predator hunter in mind, the ThOR offers a variety of different models to accommodate a wide rage of applications.
The system is entirely designed and manufactured in the USA.Each unit features a user friendly digital menu that gives you a variety of options and adjustments allowing you to customize your system.
Rich in features the ThOR series is one of the best values on the market. The ThOR has 5 reticle patterns so no more black reticle on a black and white image. The scope also performs flawlessly in total darkness, fog or smoke. If you need more magnification, use the E-Zoom feature to digitally magnify your target.
The ATN ThOR is the ideal choice for hog hunting, predator hunting, varmint hunting, scouting, observation and much more. Hunting at night will never be the same.
- Aircraft aluminum constructed body with class 3 hard anodized coating
- Digital Tactical Menu with quick-view icons
- Memory Recall preserves operational settings
- Power-off safety feature prevents accidental shut down
- Polarity: white hot / black hot / color
- 12 selectable color pallets available to view thermal images
- Five reticle patterns: ballistic, duplex, crosshair with dot, post, post with dot
- Five reticle colors: red, green, white, black, blue
- Six-step brightness control
- Easy to change battery cartridge
- Ingenious “one to run” battery power design.System can run on 1, 2, or 3 batteries.
- Batteries: 3 x CR123A battery type.
- Battery life: 8+hrs
- Sensor (microbolometer): 336x256 px
- Frame rate: 60 Hz
- Material: Vanadium oxide (VOx)
- Image Size (output resolution): 800x600 px
- Video output: Digital NTSC / PAL
- Display: Color OLED matrix, SVGA< 800x600 Color background + color reticles
- Thermal Sensitivity: <50 mK
- Spectral Response: 7-14 µm
- Field of View (H x V): 6° x 4.7°
- Eye Relief: 65 mm
- Optical Magnification: 4x
- E-Zoom: 8x, 16x
- Lens system: 50 mm
- Distance of the human detection (w/o zoom):1500 m
- Distance of the human recognition: 600 m
- Distance of the human identification:360 m
- Distance of the vehicle detection: 3300 m
- Distance of the vehicle recognition: 1320 m
- Distance of the vehicle identification:800 m
- Reticle: Multiple Reticles to Choose From
- Reticle Color: Red, Green, Blue, White & Black
- Smart Zoom:Thor's Reticle will Automatically Adjust its position when using E-Zoom (Note: Most thermal scopes al-low the user to use the scope for observation only, in E-Zoom due to the lack of this feature.)
- Brightness adjustment: Manual
- Sharpness adjustment: Automatic
- Polarity control: White hot / Black hot / Multiple Color Modes
- Start up time: <3 sec
- Waterproof: Waterproof / Dustproof
- Battery type: 3 x CR123A battery type
- Battery Life: 8+hrs
